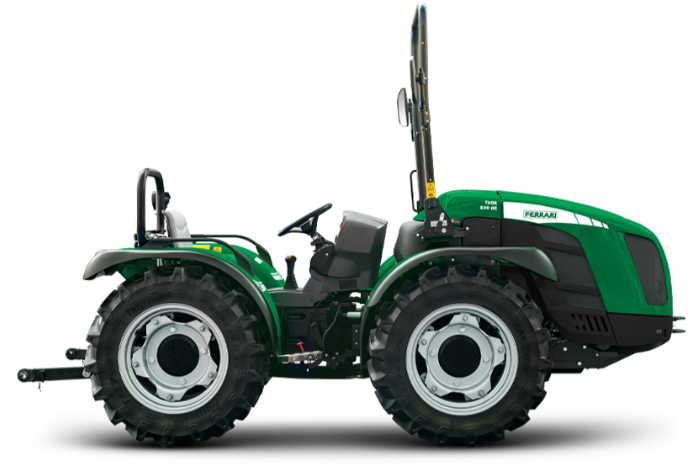

Ferrari Thor K90 AR T4 – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Thor K90 AR T4 (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

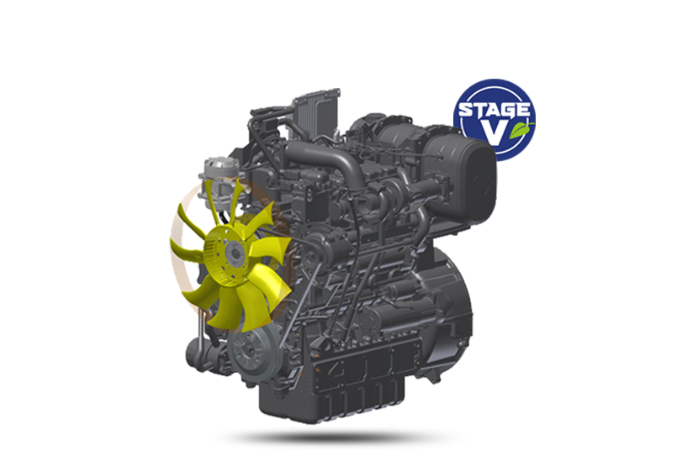

Kubota V3800-CR-T-EW03, Diesel direct injection Common rail, Turbo, 4 in-line cylinders, 3769 cc, Liquid cooling, Stage V |
|
Maximum Horsepower |
75 HP (54.6 kW) @ 2400 RPM |
|
Maximum Torque |
305.4 Nm @ 1500 RPM |
|
Transmission Type |
32-speed synchronised gearbox: 16 FWD and 16 REV with synchronised reverser |
|
Clutch |
Multidisc in oil bath with hydraulic control |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging integral chassis (±15°) OS-FRAME with central articulation |
|
Braking System |
Multidisc in oil bath with mechanical control, acting on the rear wheels |
|
Differential Lock |
Front and rear with simultaneous locking and electro-hydraulic control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
250/80-18, 280/70R18, 280/70R18 Galaxy Garden, 320/65R18, 250/85R20, 300/70R20, 300/70R20 Galaxy Garden, 340/65R20, 31x15.50-15 XTC, 31x15.50-15 STG |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from the gearbox and synchronised with the forwarding speed, Negative safety hydraulic brake, Standard: 540/540E, Optional: 540/1000 RPM |
|
Hydraulic System |
Dual circuit with independent pumps and heat exchanger, Flow rate to the hydroguide and electro-hydraulic controls 33.1 l/min, Flow rate to the lift and control valves 27.7 l/min (optional oversized pump with 49 l/min), Maximum hydraulic pressure 180 bar |
|
Rear Lift |
By two external rams, Standard: raising/lowering, Optional: position and draft control, Ball joint lifting capacity 2300 kg |
|
Front Lift |
Optional, Two external rams with front protection and 2 double-acting control valves (total 4 hydraulic outlets), Rigid with quick-couplings cat. 1, Lifting capacity 800 kg |
|
Steering |
Hydrostatic steering acting on the central joint, Flow deviator for steering unit in Reversible version |
|
Electrical System |
Battery: 100 Ah / 12 V, Alternator: 95 A, Standard equipment: Rear 7-pin and 3-pin sockets |
|
Weight |
With roll-bar: 2150 kg |
|
Ground Clearance |
195-275 mm |
|
Fuel Tank Capacity |
54 l |
|
Wheelbase |
1348 mm |
|
Width |
1125-1707 mm |
