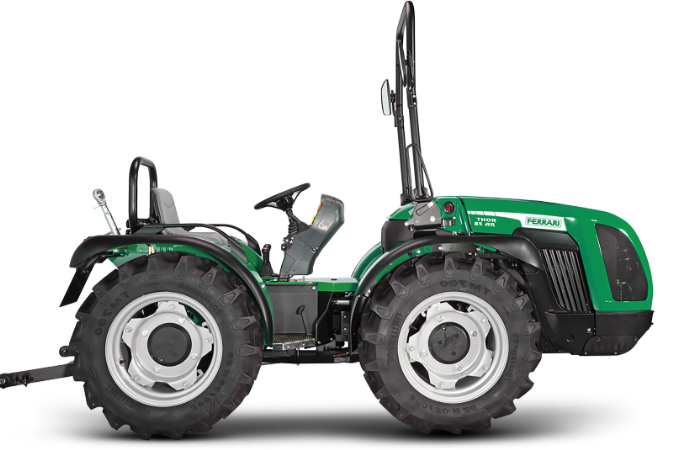

Ferrari Thor 85 AR – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Thor 85 AR (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Olive Groves, Greenhouses, Canopy Plantations, Low Foliage Crops |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, 4 In-Line Cylinders, 16 Valves, 2482 cc, Turbo/Intercooler, Common Rail Direct Injection (2000 bar), Stage V, Counter-Balance Shafts |
|
Maximum Horsepower |
75.3 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
300 Nm @ 1500 RPM |
|
Transmission Type |
32-Speed Synchronised Gearbox: 16 FWD and 16 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath with Hydraulic Control |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on the Rear Wheels |
|
Differential Lock |
Front and Rear with Simultaneous Locking and Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
250/80-18, 280/70R18, 280/70R18 Galaxy Garden, 250/85R20, 300/70R20, 300/70R20 Galaxy Garden, 340/65R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC, 320/65R18, 280/70R20 PneuTrac |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard: 540/540E, Optional: 540/1000 |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Flow Rate to Hydroguide and Electro-Hydraulic Controls 33.5 l/min, Flow Rate to Lift and Control Valves 29.5 l/min (Optional Oversized Pump 51 l/min), Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
By Two External Rams, Standard: Raising/Lowering, Optional: Position and Draft Control, Ball Joint Lifting Capacity 2300 kg |
|
Front Lift |
Optional, Two External Rams with Front Protection, 2 Double-Acting Control Valves (Total 4 Hydraulic Outlets), Rigid with Quick-Couplings Cat. 1 and 2, Lifting Capacity 800 kg |
|
Steering |
Hydrostatic Steering Acting on the Central Joint, Flow Deviator for Steering Unit in Reversible Version |
|
Electrical System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Single-Pole Dashboard Socket, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2170 kg (Roll-Bar) |
|
Fuel Tank Capacity |
58 l |
|
Ground Clearance |
210-305 mm |
|
Wheelbase |
1450 mm |
|
Width |
1125-1707 mm |
