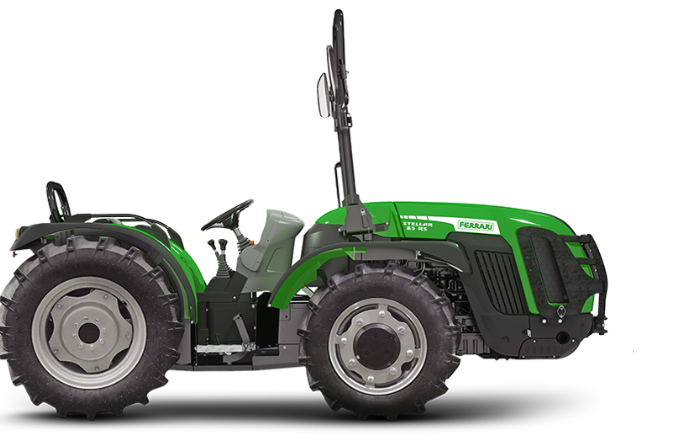

Ferrari Stellar 85 RS – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Stellar 85 RS (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Olive Groves, Greenhouses, Canopy Plantations, Low Foliage Crops |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, Diesel Common Rail Direct Injection, Turbo Intercooler, 4 Cylinders, 16 Valves, 2482 cc, Liquid Cooling, Stage V |
|
Maximum Horsepower |
75.3 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
300 Nm @ 1500 RPM |
|
Transmission Type |
32-Speed Synchronised Gearbox: 16 FWD and 16 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath with Hydraulic Control |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on the Rear Wheels with Automatic Engagement of 4-Wheel Drive, Independent Maneuvering Brakes Acting on the Rear Wheels |
|
Differential Lock |
Front and Rear, Simultaneous or Rear Only with Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
260/70R16*300/70R20, 260/70R16*340/65R20, 250/80-16*320/85R20, 280/70R18*360/70R20, 280/70R18*420/65R20, 250/80-18*280/85R24, 320/65R18*320/70R24, 320/65R18*380/70R20, 280/70R18*380/70R20, 280/70R18*320/70R24, 280/70R18*320/85R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from the Gearbox and Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard: 540/540E, Optional: 540/1000 |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Hydraulic Pump Flow Rate of the Power Steering and Electro-Hydraulic Controls 33.5 l/min, Hydraulic Pump Flow Rate of the Lift and Control Valves 29.5 l/min (Optional Oversized Pump with 51 l/min), Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
Standard: Up/Down Lift with Two External Cylinders, Optional: Position and Draft-Controlled, Ball Joint Lifting Capacity 2700 kg |
|
Steering |
Hydrostatic Steering Acting on the Front Wheels |
|
Electrical System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Single-Pole Dashboard Socket, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2260 kg (Roll-Bar), 2380 kg (Cabin) |
|
Cab Options |

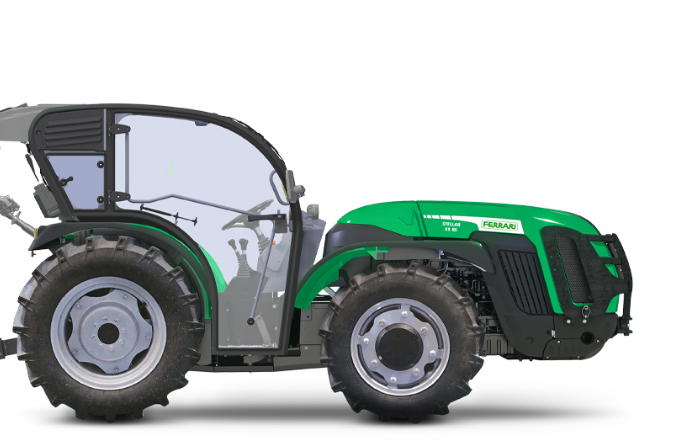

Ultra-Low Profile Cab (Minimum Height 170 cm) with Monocoque Chassis and Platform Suspended on Silent-Block, LED Beacon Lamp with Foldable Support, Adjustable LED Rear Work Lights, Exterior Mirrors, Two USB Sockets, Available in Two Versions: “Compact Clima” with Air Conditioning, Ventilation, and Heating System or “Compact Pro” Pressurised and Cat. 4 Approved with Digital Pressurization Control, Active Carbon Filters, USB Car Radio with Loudspeakers, LED Front Work Lights |
|
Ground Clearance |
200-235 mm |
|
Wheelbase |
1607 mm |
|
Width |
1338-1908 mm |
