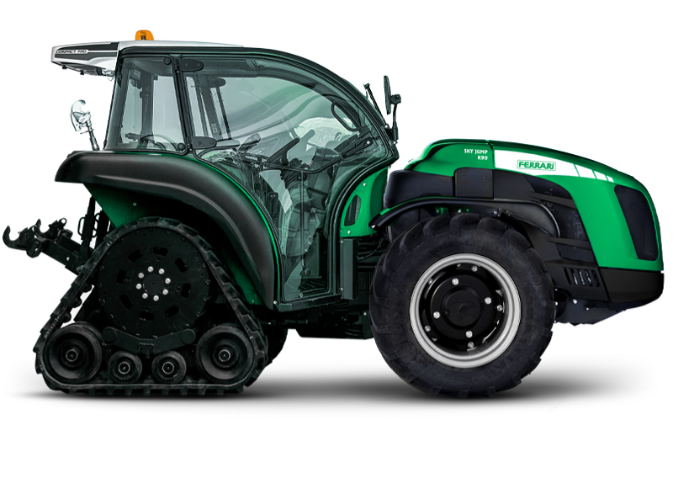

Ferrari Sky Jump K90 DUALSTEER T4 – 4WD Specialized Tractor for Vineyards and Greenhouses
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Sky Jump K90 DUALSTEER T4 (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Pergola Vineyards, Canopy Plantations, Greenhouses, Orchards, Vineyards on Slopes |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota V3800-CR-T-EW03, Diesel direct injection common rail, Turbo, 4 cylinders, 3769 cc, Liquid cooling, Stage V |
|
Maximum Horsepower |
75 HP (54.6 kW) @ 2400 RPM |
|
Maximum Torque |
305.4 Nm @ 1500 RPM |
|
Transmission Type |
32-speed synchronized gearbox: 16 FWD and 16 REV with synchronized reverser |
|
Clutch |
Multidisc in oil bath electronically-managed and proportional hydraulic control with PRO-ACT System |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging integral chassis (±15°) OS-FRAME with central articulation and steering wheels |
|
Braking System |
Oil bath discs with hydrostatic control, acting on the four wheels with automatic engagement of 4-wheel drive, Independent manoeuvring brakes acting on the rear wheels |
|
Differential Lock |
Front and rear, simultaneous or rear only with electro-hydraulic control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |

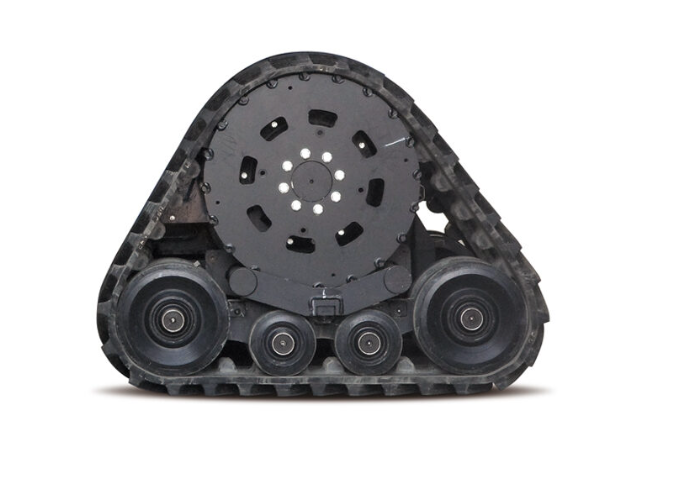

Front: 280/70R20, 280/70R20 PneuTrac; Rear: Rubber tracks (Width 305 mm, Length 1223 mm) |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from the gearbox and synchronized with forwarding speed, Negative safety hydraulic brake, 540/540E (optional: 540/1000) RPM |
|
Hydraulic System |
Double circuit with independent pumps and heat exchanger, Flow rate to power steering and electro-hydraulic controls 33.1 l/min, Flow rate to lift and control valves 27.7 l/min (optional oversized pump 49 l/min), Maximum hydraulic pressure 180 bar |
|
Rear Lift |
By two external cylinders, Standard: Up/down lift, Optional: Position and draft-controlled, Ball joint lifting capacity 2700 kg |
|
Front Lift |
Optional, Two-cylinder, complete with front bumper and 4 front hydraulic outlets (replicated from the rear), Rigid with quick couplings cat. 1, Lifting capacity 800 kg |
|
Steering |
Double steering system Dualsteer® with 4-cylinders, Hydrostatic steering acting on front wheels and central joint |
|
Electrical System |
Battery: 100 Ah / 12 V, Alternator: 95 A, Standard equipment: Vehicle Control Unit, full LED street lights and indicator system, front LED working lights, rear 7-pin and 3-pin sockets |
|
Weight |
With cab: 3000 kg |
|
Ground Clearance |
254 mm |
|
Wheelbase |
1348 mm |
|
Width |
1350 mm |
