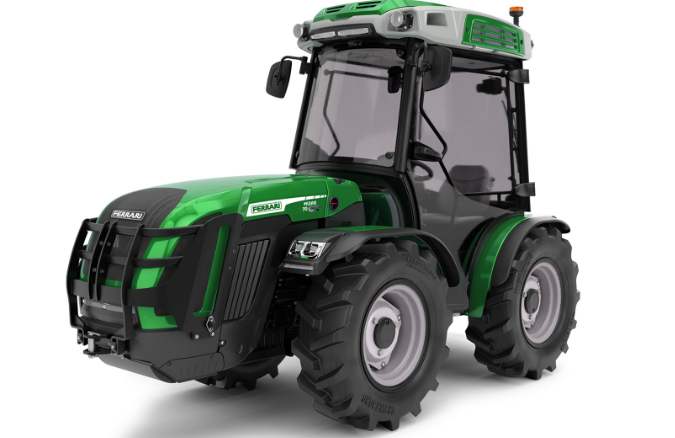

Ferrari Mizar 70 Dualsteer® – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Mizar 70 Dualsteer® (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Olive Groves, Greenhouses, Canopy Plantations, Low Foliage Crops |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 2504 TCR, Diesel Common Rail Direct Injection, Turbo Intercooler, 4 In-Line Cylinders, 16 Valves, 2482 cc, Liquid Cooling, Stage V |
|
Maximum Horsepower |
63 HP (46 kW) @ 2600 RPM |
|
Maximum Torque |
205 Nm @ 1500 RPM |
|
Transmission Type |
24-Speed Synchronised Gearbox: 12 FWD and 12 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath with Electronically-Managed and Proportional Hydraulic Control, Power Clutch System Button, PRO-ACT System with Easy Plus™ Assisted Engagement, Smart Brake & Go Function |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation and Steering Wheels |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on Rear Wheels, Independent Manoeuvring Brakes Acting on Rear Wheels |
|
Differential Lock |
Front and Rear with Simultaneous Locking and Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
7.00-18, 250/80-18, 280/70R18, 280/70R18 Garden, 320/65R18, 340/65R18, 260/70R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC, 300/70R20, 300/70R20 Garden, 250/85R20, 280/70R20, 280/70R20 PneuTrac |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, 540/540E RPM |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Hydraulic Pump Flow Rate of Power Steering and Electro-Hydraulic Controls 13 l/min, Hydraulic Pump Flow Rate of Lift and Control Valves 37 l/min (Optional 48 l/min), Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
By Two External Cylinders, Standard: Up/Down Lift, Optional: Position and Draft-Controlled, Ball Joint Lifting Capacity 1900 kg |
|
Joystick |
Optional, Proportional Electronic Control of Rear Lift and Control Valves: 1 Continuous Flow with Adjustable Flow Rate and Free Flow Oil Return, 4 Double-Acting (Total 10 Hydraulic Outlets), Potentiometer for Joystick Sensibility Adjustment, Remote PTO Engagement Control, Storage Armrest, 48 l/min Flow Rate |
|
Steering |
Dualsteer® 4-Cylinder Steering System, Hydrostatic Steering Acting on Front Wheels and Central Joint, Flow Deviator for Steering Unit |
|
Electrical System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Full LED Street Light and Indicator System, Front LED Working Lights, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
1830 kg (Roll-Bar), 1960 kg (Cabin) |
|
Cab Options |
Soundproofed, ROPS and FOPS Homologated, Monocoque Body with 4-Upright Conical Structure on Silent Blocks, LED Beacon Lamp, Fabric Seat, USB Car Radio with Speaker Phone and Sound Diffusers, 2 USB Outlets, Available with Ventilation and Heating (VISTA) or Air-Conditioning, Pressurised and Cat. 4 Certified (VISTA PRO), Full LED Working Lights (Optional on VISTA, Standard on VISTA PRO), Optional Active Carbon Filters for Cat. 4 |
|
Ground Clearance |
214-299 mm |
|
Wheelbase |
1480 mm |
|
Width |
1150-1764 mm |
