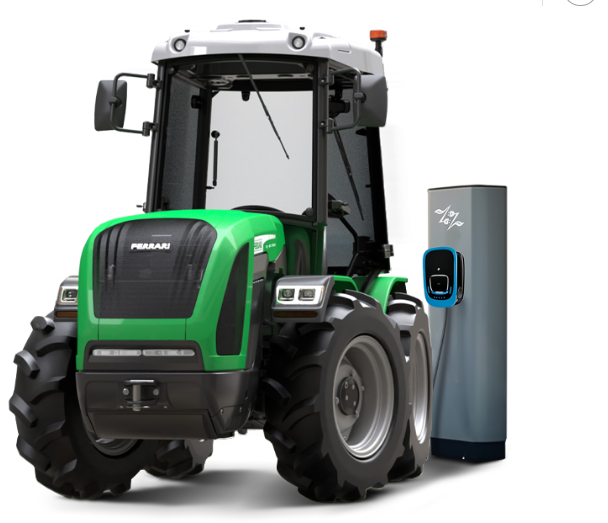

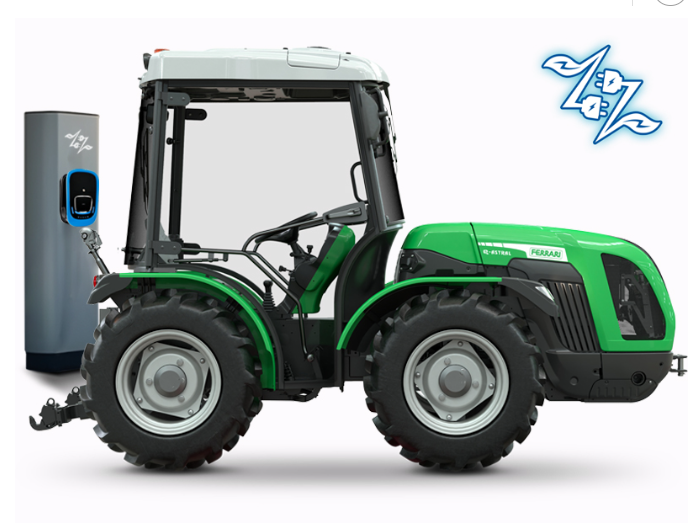

Ferrari e-Astral RS – 4WD Specialized Electric Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari e-Astral RS (4WD) |
|
Vehicle Category |
Specialized Electric Tractor |
|
Fuel Type |
Electric |
|
Application |
Orchards, Vineyards, Greenhouses, Nurseries, Municipality Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Electric, Total Installed Electrical Power 41 kW |
|
Transmission Type |
24-Speed Synchronised Gearbox: 12 FWD and 12 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on Rear Wheels, Independent Manoeuvring Brakes Acting on Rear Wheels |
|
Differential Lock |
Front and Rear with Simultaneous Locking and Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
Tractor: 8.25-16, 210/95R16, 250/80-18, 280/70R18, 320/65R18, 260/70R20 | Garden: 280/70R18 | Terra Tyre: 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, 540/540E RPM |
|
Hydraulic System |
Dual Circuit with Dedicated Electric Engine, Hydraulic Flow Rate of Power Steering and Electro-Hydraulic Controls 15 l/min, Hydraulic Flow Rate of Lift and Control Valves 26 l/min, Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
By Two External Cylinders, Standard: Up/Down Lift, Optional: Position and Draft-Controlled, Ball Joint Lifting Capacity 1510 kg |
|
Joystick |
Optional, Proportional Electronic Control of Rear Lift and Control Valves: 1 Continuous Flow with Adjustable Flow Rate and Free Flow Oil Return, 3 Double-Acting (Total 8 Hydraulic Outlets) |
|
Steering |
Hydrostatic Steering Acting on the Front Wheels, Flow Deviator for Steering Unit in Reversible Version |
|
Electrical System |
Lithium Batteries, Voltage 48 V, Capacity 36 kWh, Autonomy 3 to 6 Hours, Charging Time with 6 kWh Input: Approx. 3 Hours (20 to 80%), Approx. 5 Hours (0 to 100%), Vehicle Control Unit, LED Street Light and Indicator System, Single-Pole Dashboard Socket, Rear 7-Pin Socket |
|
Weight |
1680 kg (Roll-Bar), 1785 kg (Cabin) |
|
Cab Options |
Optional VISTA CLIMA: Homologated, Soundproofed, Monocoque Body with 4-Upright Suspended on Silent Blocks, Ventilation, Heating and Air-Conditioning System, Fabric Seat, Car Radio Preparation, LED Beacon Lamp, Front and Rear Working Lights |
|
Ground Clearance |
200-275 mm |
|
Wheelbase |
1390 mm |
|
Width |
1207-1643 mm |
