Specification

Details

Tractor Model

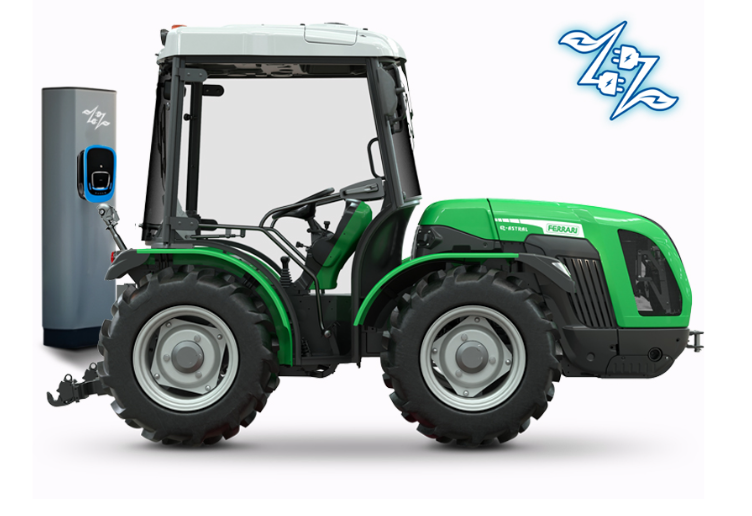

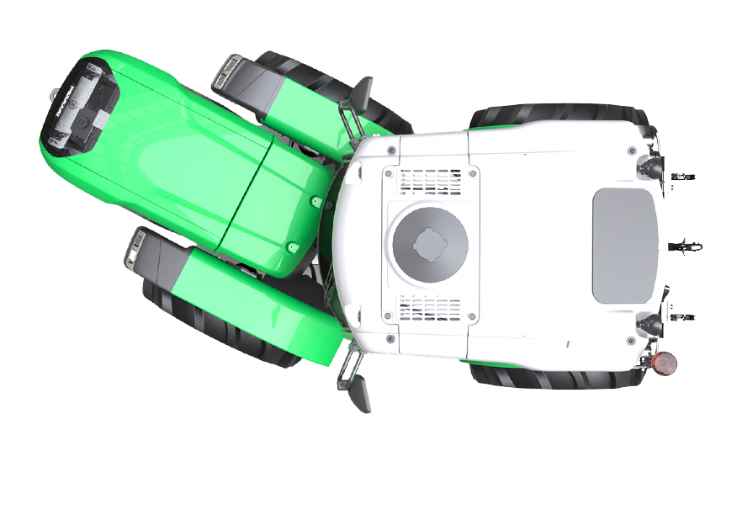

Ferrari e-Astral AR (4WD)

Vehicle Category

Specialized Electric Tractor

Fuel Type

Electric

Application

Orchards, Vineyards, Greenhouse Crops, Nurseries, Municipality Activities

Specification

Details

Engine

Electric, Total installed electrical power 41 kW

Transmission Type

24-speed synchronised gearbox: 12 FWD and 12 REV with synchronised reverser

Clutch

Multidisc in oil bath

Specification

Details

Frame

Swinging integral chassis (±15°) OS-FRAME with central articulation

Braking System

Multidisc in oil bath with mechanical control, acting on the rear wheels

Differential Lock

Front and rear with simultaneous locking and electro-hydraulic control

Specification

Details

Tyre Size (Front/Rear Combinations)

Tractor: 8.25-16, 210/95R16, 250/80-18, 280/70R18, 320/65R18, 260/70R20; Garden: 280/70R18; Terra Tyre: 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC

Specification

Details

PTO Type

Independent from the gearbox and synchronised with forwarding speed, Negative safety hydraulic brake, 540/540E RPM

Hydraulic System

Dual circuit with dedicated electric engine, Flow rate to power steering and electro-hydraulic controls 15 l/min, Flow rate to lift and control valves 26 l/min, Maximum hydraulic pressure 180 bar

Rear Lift

By two external cylinders, Standard: up/down lift, Optional: position and draft-controlled, Ball joint lifting capacity 1510 kg

Steering

Hydrostatic steering acting on the central joint, Flow deviator for steering unit in the reversible version

Electrical System

Lithium batteries, Voltage 48 V, Capacity 36 kWh, Standard equipment: Vehicle Control Unit, LED street light and indicator system, single-pole dashboard socket, rear 7-pin socket

Weight

With roll-bar: 1660 kg, With cabin: 1740 kg

Wheelbase

1248 mm

Width

1002-1438 mm

Ground Clearance

200-275 mm
