Ferrari Draco K90 Dualsteer® – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Draco K90 Dualsteer® (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Olive Groves, Greenhouses, Canopy Plantations, Low Foliage Crops |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota V3800-CR-T-EW03, Diesel Direct Injection Common Rail, Turbo, 4 Cylinders, 3769 cc, Liquid Cooling, Stage V |
|
Maximum Horsepower |
75 HP (54.6 kW) @ 2400 RPM |
|
Maximum Torque |
305.4 Nm @ 1500 RPM |
|
Transmission Type |
32-Speed Synchronised Gearbox: 16 FWD and 16 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath, Electronically-Managed with Proportional Hydraulic Control, PRO-ACT System |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation and Steering Wheels |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on Four Wheels with Automatic 4-Wheel Drive Engagement, Independent Manoeuvring Brakes on Rear Wheels |
|
Differential Lock |
Front and Rear, Simultaneous or Rear Only with Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
260/70R16*300/70R20, 260/70R16*340/65R20, 280/70R18*360/70R20, 280/70R18*320/70R24, 320/65R18*380/70R20, 340/65R18*420/65R24, 320/65R18*320/70R24, 280/70R18*380/70R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard: 540/540E, Optional: 540/1000 |
|
Hydraulic System |
Double Circuit with Independent Pumps and Heat Exchanger, Hydraulic Pump Flow Rate of Power Steering and Electro-Hydraulic Controls 33.1 l/min, Hydraulic Pump Flow Rate of Lift and Control Valves 27.7 l/min (Optional Oversized Pump 49 l/min), Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
Standard: Up/Down Lift with Two External Cylinders, Optional: Position and Draft-Controlled, Ball Joint Lifting Capacity 2700 kg |
|

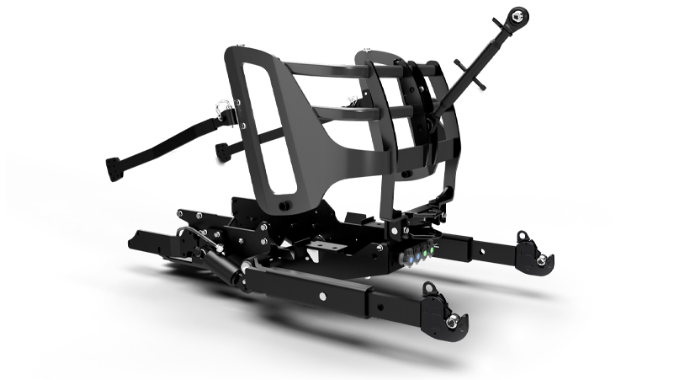

Front Lift |
Optional, Two-Cylinder, Complete with Front Bumper and 4 Front Hydraulic Outlets (Replicated from Rear), Rigid with Quick Couplings Cat. 1, Lifting Capacity 800 kg |
|
Joystick |
Optional, Proportional Electronic Control of Rear Lift (and Front Lift if Present), 1 Continuous Flow with Adjustable Flow Rate and Free Flow Oil Return, 3 Double-Acting (Replacing Standard Ones), Total 8 Hydraulic Outlets, Potentiometer for Hydraulic Flow Adjustment, 49 l/min Oversized Pump |
|
Steering |
Double Steering System Dualsteer® with 4-Cylinders, Hydrostatic Steering Acting on Front Wheels and Central Joint |
|
Electrical System |
Battery 100 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Full LED Street Lights and Indicator System, Front LED Working Lights, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2570 kg (Roll-Bar), 2700 kg (Cabin) |
|
Cab Options |
Optional Compact Pro Low-Profile, Pressurised and Homologated Cat. 4 (Activated Carbon Filters Required), Soundproof with Monocoque Body on Silent-Blocks, Beacon Lamp, Fabric Seat, Safety Cell, Air Conditioning, Brake-Off Parking Brake, Optional Activated Carbon Filters |
|
Ground Clearance |
134-234 mm |
|
Wheelbase |
1607 mm |
|
Width |
1350-1878 mm |
