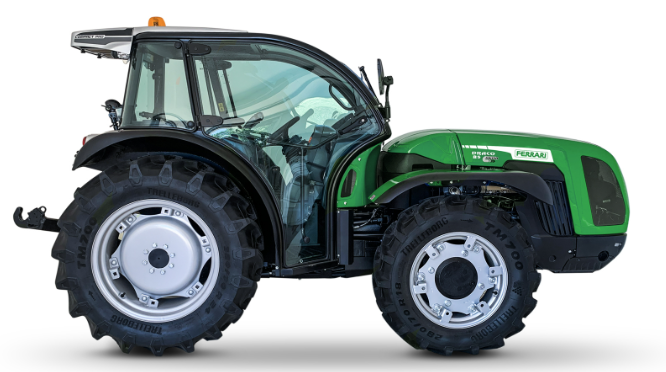

Ferrari Draco 85 Dualsteer® – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Draco 85 Dualsteer® (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Olive Groves, Greenhouses, Canopy Plantations, Low Foliage Crops |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

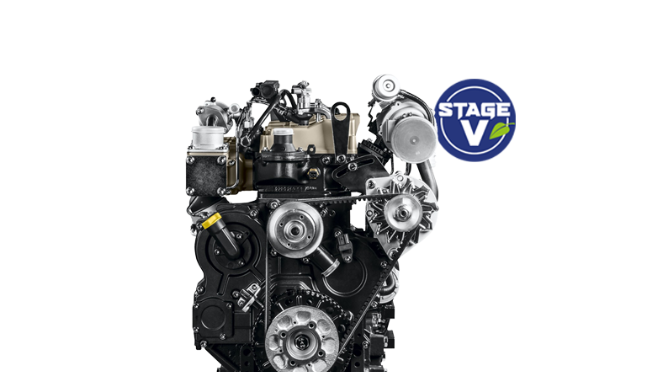

Kohler KDI 2504 TCR, 4 Cylinders, 16 Valves, 2482 cc, Turbo/Intercooler, Common Rail Direct Injection (2000 bar), Stage V |
|
Maximum Horsepower |
75.3 HP (55.4 kW) @ 2300 RPM |
|
Maximum Torque |
300 Nm @ 1500 RPM |
|
Transmission Type |
32-Speed Synchronised Gearbox: 16 FWD and 16 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath with Electronically-Managed and Proportional Hydraulic Control, Power Clutch System Button, PRO-ACT System with Easy Plus™ Assisted Engagement, Smart Brake & Go Function |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation and Steering Wheels |
|
Braking System |
Oil Bath Discs with Hydrostatic Control, Acting on Four Wheels with Automatic 4-Wheel Drive Engagement, Independent Maneuvering Brakes on Rear Wheels |
|
Differential Lock |
Front and Rear, Simultaneous or Rear Only with Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
260/70R16*300/70R20, 260/70R16*340/65R20, 280/70-18*360/70R20, 280/70-18*320/70R24, 320/65R18*380/70R20, 340/65R18*420/65R24, 320/65R18*320/70R24, 280/70R18*380/70R20 |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, Standard: 540/540E, Optional: 540/1000 |
|
Hydraulic System |
Dual Circuit with Independent Pumps and Heat Exchanger, Flow Rate to Hydroguide and Electro-Hydraulic Controls 33.5 l/min, Flow Rate to Lift and Control Valves 29.5 l/min (Optional Oversized Pump 51 l/min), Maximum Pressure 180 bar |
|
Rear Lift |
By Two External Rams, Standard: Raising/Lowering, Optional: Position and Draft Control, Ball Joint Lifting Capacity 2700 kg |
|
Front Lift |
Optional, Two Rams with Front Protection, 2 Double-Acting Control Valves (Total 4 Front Hydraulic Outlets), Rigid with Quick-Couplings Cat. 1 and 2, Lifting Capacity 800 kg |
|
Joystick |
Optional, Proportional Electronic Control of Lifts and Control Valves: 1 Continuous Flow with Adjustable Flow Rate and Free Flow Oil Return, 3 Double-Acting (Total 8 Hydraulic Outlets), Potentiometer for Hydraulic Flow Adjustment, Remote PTO Engagement Control |
|
Steering |
Double Steering System Dualsteer® with 4-Cylinders, Hydrostatic Steering Acting on Front Wheels and Central Joint |
|
Electrical System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Front LED Working Lights, Single-Pole Dashboard Socket, Rear 7-Pin and 3-Pin Sockets |
|
Weight |
2520 kg (Roll-Bar), 2640 kg (Cabin) |
|
Cab Options |
Optional COMPACT PRO Low-Profile, Pressurised and Homologated Cat. 4, Soundproof with Monocoque Body on Silent-Blocks, Beacon Lamp, Fabric Seat, Safety Cell, Automotive-Type Dashboard, Air Conditioning, Brake-Off Parking Brake, Optional Active Carbon Filters |
|
Ground Clearance |
156-221 mm |
|
Fuel Tank Capacity |
78 l (Roll-Bar), 58 l (Cabin) |
|
Wheelbase |
1607 mm |
|
Width |
1350-1878 mm |
