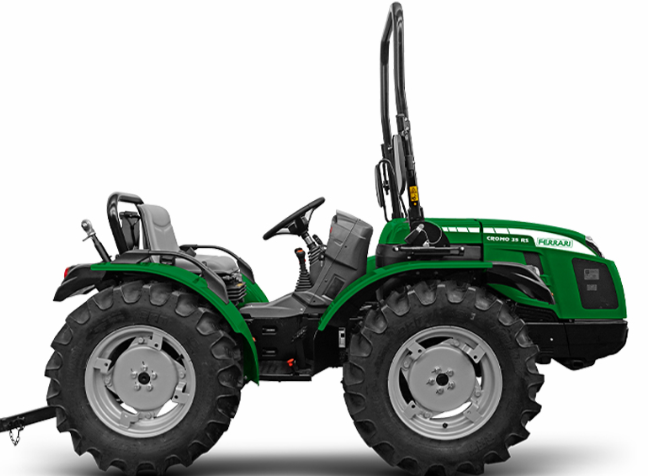

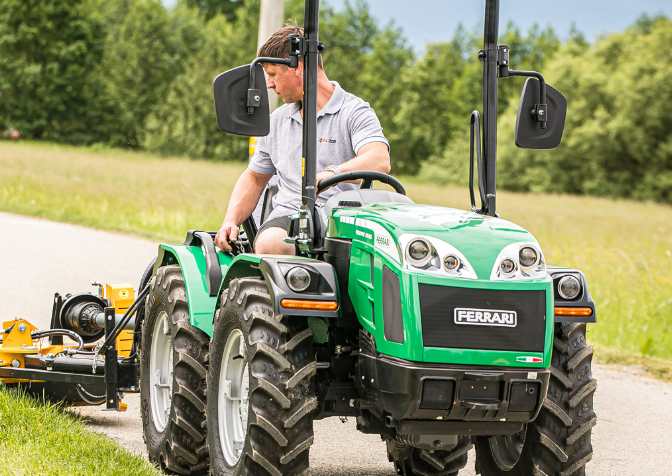

Ferrari Cromo 35 RS T4 – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Cromo 35 RS T4 (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouse Crops, Nurseries, Municipality Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota D1105, Diesel indirect injection, Natural aspiration, 3 cylinders, 1123 cc, Liquid cooling, Stage V |
|
Maximum Horsepower |
25 HP (18.5 kW) @ 3000 RPM |
|
Maximum Torque |
71.5 Nm @ 2200 RPM |
|
Transmission Type |
Gearbox with easy gear engagement: 8 FWD + 4 REV speeds |
|
Clutch |
Dry single disc |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging integral chassis (±15°) OS-FRAME with steering wheels |
|
Braking System |
Drum brakes acting on rear wheels, Independent manoeuvring brakes acting on the rear wheels |
|
Differential Lock |
Front and rear with simultaneous locking and mechanical control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
Tractor: 6.50-16, 210/95R16 (7.50-16), 260/70R16; Garden: 240/70-15 |
Components & Features
|
Specification |
Details |
|
PTO Type |
At 540 rpm and synchronised, Optional: Independent from gearbox at 540 rpm with multi-disc oil bath clutch, electro-hydraulic control and synchronised (hydraulic pump flow rate: 15.5 l/min) |
|
Hydraulic System |
Single-circuit, Hydraulic pump flow rate 19 l/min, Maximum hydraulic pressure 125 bar |
|
Rear Lift |
Up/down lift, by two external cylinders, Ball joint lifting capacity 950 kg |
|
Steering |
Hydrostatic steering acting on the front wheels |
|
Electrical System |
60 Ah / 12 V battery, 40 A alternator, Standard equipment: Street light and indicator system, front working lights, auxiliary power outlet on the dashboard (12V), rear 7-pin socket |
|
Weight |
With roll-bar: 1060 kg |
|
Ground Clearance |
170-335 mm |
|
Fuel Tank Capacity |
43 l |
|
Wheelbase |
968 mm |
|
Width |
1069-1391 mm |
