Ferrari Cromo 35 RS Junior – 4WD Specialized Tractor for Orchards and Vineyards

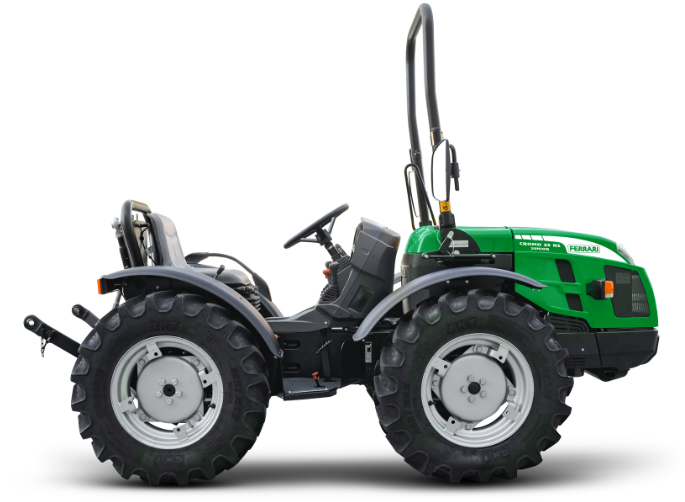

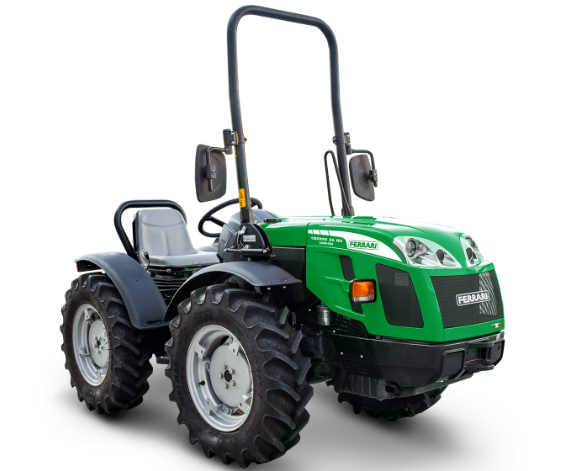

Images:

1

2

Specifications

Specification	Details
Tractor Model	Ferrari Cromo 35 RS Junior (4WD)
Vehicle Category	Specialized Tractor
Fuel Type	Diesel
Application	Orchards, Vineyards, Greenhouses, Nurseries, Small-Scale Farming

Frame & Drivetrain

Specification	Details
Engine	Kubota D1105, Diesel Indirect Injection, Natural Aspiration, 3 Cylinders, 1123 cc, Liquid Cooling, Stage V
Maximum Horsepower	25 HP (18.5 kW) @ 3000 RPM
Maximum Torque	71.5 Nm @ 2200 RPM
Transmission Type	Gearbox with Easy Gear Engagement: 8 FWD + 4 REV Speeds
Clutch	Dry Single Disc

Suspension & Brakes

Specification	Details
Frame	Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels
Braking System	Drum Brakes Acting on Rear Wheels, Optional Independent Manoeuvring Brakes Acting on Rear Wheels
Differential Lock	Front and Rear with Simultaneous Locking and Mechanical Control

Wheels & Tyres

Specification	Details
Tyre Size (Front/Rear Combinations)	Tractor: 6.50-16, 210/95R16 (7.50-16), 260/70R16 \| Garden: 240/70-15

Components & Features

Specification	Details
PTO Type	540 RPM and Synchronised, Mechanical Engagement Control, Optional: Independent from Gearbox at 540 RPM with Multi-Disc Oil Bath Clutch, Electro-Hydraulic Control and Synchronised (Hydraulic Pump Flow Rate: 15.5 l/min)
Hydraulic System	Single-Circuit, Hydraulic Pump Flow Rate 19 l/min, Maximum Hydraulic Pressure 125 bar
Rear Lift	Up/Down Lift, Standard: Single External Cylinder (500 kg), Optional: Two External Cylinders (950 kg)
Steering	Hydrostatic Steering Acting on the Front Wheels
Electrical System	Battery 60 Ah / 12 V, Alternator 40 A, Street Light and Indicator System, Auxiliary Power Outlet on Dashboard (12V), Rear 7-Pin Socket
Weight	1060 kg (Roll-Bar)
Ground Clearance	170-335 mm
Fuel Tank Capacity	43 l
Wheelbase	1200 mm
Width	1069-1391 mm

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
