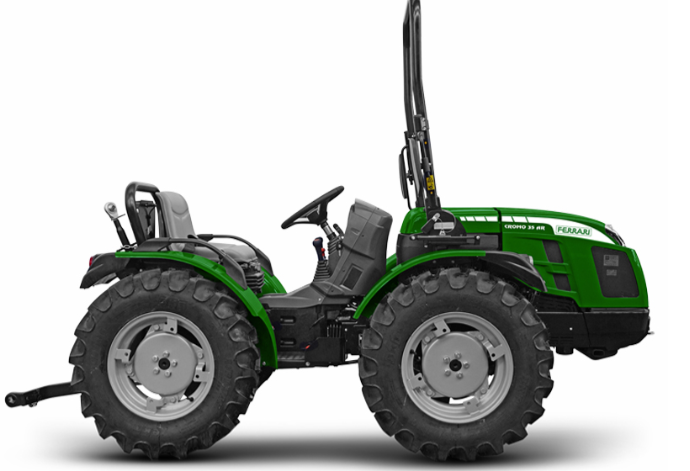

Ferrari Cromo 35 AR – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Cromo 35 AR (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Nurseries, Small-Scale Farming |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kubota D1105, Diesel Indirect Injection, Natural Aspiration, 3 Cylinders, 1123 cc, Liquid Cooling, Stage V |
|
Maximum Horsepower |
25 HP (18.5 kW) @ 3000 RPM |
|
Maximum Torque |
71.5 Nm @ 2200 RPM |
|
Transmission Type |
Gearbox with Easy Gear Engagement: 8 FWD + 4 REV Speeds |
|
Clutch |
Dry Single Disc |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation |
|
Braking System |
Drum Brakes Acting on Rear Wheels |
|
Differential Lock |
Front and Rear with Simultaneous Locking and Mechanical Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
Tractor: 6.50-16, 210/95R16 (7.50-16), 260/70R16 | Garden: 240/70-15 |
Components & Features
|
Specification |
Details |
|
PTO Type |
540 RPM and Synchronised, Mechanical Engagement Control |
|
Hydraulic System |
Single-Circuit, Hydraulic Pump Flow Rate 19 l/min, Maximum Hydraulic Pressure 125 bar |
|
Rear Lift |
Up/Down Lift by Two External Cylinders, Ball Joint Lifting Capacity 950 kg |
|
Steering |
Hydrostatic Steering Acting on the Central Joint |
|
Electrical System |
Battery 60 Ah / 12 V, Alternator 40 A, Street Light and Indicator System, Front Working Lights, Auxiliary Power Outlet on Dashboard (12V), Rear 7-Pin Socket |
|
Weight |
1040 kg (Roll-Bar) |
|
Ground Clearance |
170-335 mm |
|
Fuel Tank Capacity |
43 l |
|
Wheelbase |
1200 mm |
|
Width |
989-1391 mm |
