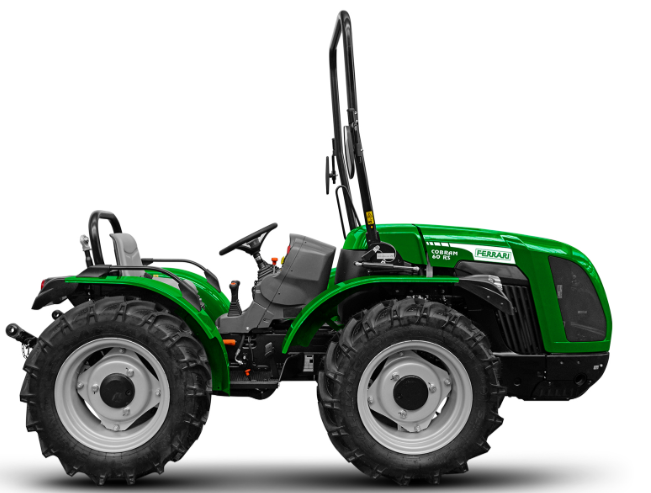

Ferrari Cobram 60 RS – 4WD Specialized Tractor for Orchards and Vineyards
Specifications
|
Specification |
Details |
|
Tractor Model |
Ferrari Cobram 60 RS (4WD) |
|
Vehicle Category |
Specialized Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards, Vineyards, Greenhouses, Nurseries, Municipality Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
Kohler KDI 1903 TCA, Diesel Common Rail Direct Injection, Turbo Intercooler, 3 Cylinders, 1861 cc, Liquid Cooling, Stage V |
|
Maximum Horsepower |
49 HP (36 kW) @ 2600 RPM |
|
Maximum Torque |
190 Nm @ 1500 RPM |
|
Transmission Type |
24-Speed Synchronised Gearbox: 12 FWD and 12 REV with Synchronised Reverser |
|
Clutch |
Multidisc in Oil Bath |
Suspension & Brakes
|
Specification |
Details |
|
Frame |
Swinging Integral Chassis (±15°), OS-FRAME with Steering Wheels |
|
Braking System |
Multidisc in Oil Bath with Mechanical Control, Acting on Rear Wheels, Independent Manoeuvring Brakes Acting on Rear Wheels |
|
Differential Lock |
Front and Rear with Simultaneous Locking and Electro-Hydraulic Control |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size (Front/Rear Combinations) |
8.25-16, 210/95R16 (7.50-16), 250/80-18, 280/70R18, 280/70R18 Garden, 320/65R18, 260/70R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC |
Components & Features
|
Specification |
Details |
|
PTO Type |
Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, 540 RPM |
|
Hydraulic System |
Dual Circuit with Independent Pumps, Hydraulic Pump Flow Rate of Power Steering and Electro-Hydraulic Controls 17.5 l/min, Hydraulic Pump Flow Rate of Lift and Control Valves 23 l/min, Maximum Hydraulic Pressure 180 bar |
|
Rear Lift |
By Two External Cylinders, Standard: Up/Down Lift, Optional: Position and Draft-Controlled, Ball Joint Lifting Capacity 1200 kg |
|
Steering |
Hydrostatic Steering Acting on the Front Wheels, Flow Deviator for Steering Unit in Reversible Version |
|
Electrical System |
Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Single-Pole Dashboard Socket, Rear 7-Pin Socket |
|
Weight |
1700 kg (Roll-Bar) |
|
Ground Clearance |
200-275 mm |
|
Wheelbase |
1340 mm |
|
Width |
1207-1643 mm |
