Specification

Details

Tractor Model

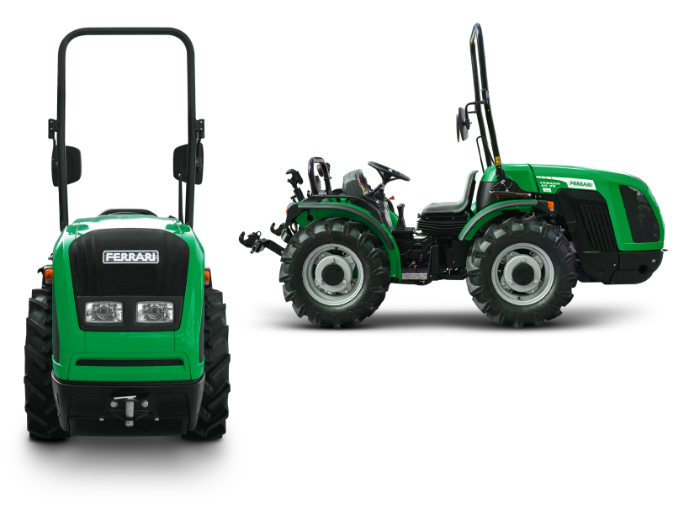

Ferrari Cobram 60 AR MICRO T4 (4WD)

Vehicle Category

Specialized Tractor

Fuel Type

Diesel

Application

Orchards, Vineyards, Greenhouse Crops, Nurseries, Municipality Activities

Specification

Details

Engine

Kohler KDI 1903 TCA, Diesel common rail direct injection, Turbo intercooler, 3 cylinders, 1861 cc, Liquid cooling, Stage V

Maximum Horsepower

49 HP (36 kW) @ 2600 RPM

Maximum Torque

190 Nm @ 1500 RPM

Transmission Type

24-speed synchronised gearbox: 12 FWD and 12 REV with synchronised reverser

Clutch

Multidisc in oil bath

Specification

Details

Frame

Swinging integral chassis (±15°) OS-FRAME with central articulation

Braking System

Multidisc in oil bath with mechanical control, acting on the rear wheels

Differential Lock

Front and rear with simultaneous locking and electro-hydraulic control

Specification

Details

Tyre Size (Front/Rear Combinations)

8.25-16, 7.00-18, 210/95R18

Specification

Details

PTO Type

Independent from the gearbox and synchronised with forwarding speed, Negative safety hydraulic brake, 540 RPM

Hydraulic System

Dual circuit with independent pumps, Flow rate to power steering and electro-hydraulic controls 17.5 l/min, Flow rate to lift and control valves 23 l/min (optional PREMIUM system: 33.5 l/min), Maximum hydraulic pressure 180 bar

Rear Lift

By two external cylinders, Standard: Up/down lift, Optional: Position and draft-controlled, Ball joint lifting capacity 1200 kg

Steering

Hydrostatic steering acting on the central joint, Flow deviator for steering unit

Electrical System

Battery: 80 Ah / 12 V, Alternator: 95 A, Standard equipment: Vehicle Control Unit, street light and indicator system, single-pole dashboard socket, rear 7-pin socket

Weight

With roll-bar: 1590 kg

Ground Clearance

253-279 mm

Wheelbase

1248 mm

Width

950-1322 mm
