Specification

Details

Tractor Model

Ferrari Cobram 60 AR (4WD)

Vehicle Category

Specialized Tractor

Fuel Type

Diesel

Application

Orchards, Vineyards, Greenhouses, Nurseries, Municipality Activities

Specification

Details

Engine

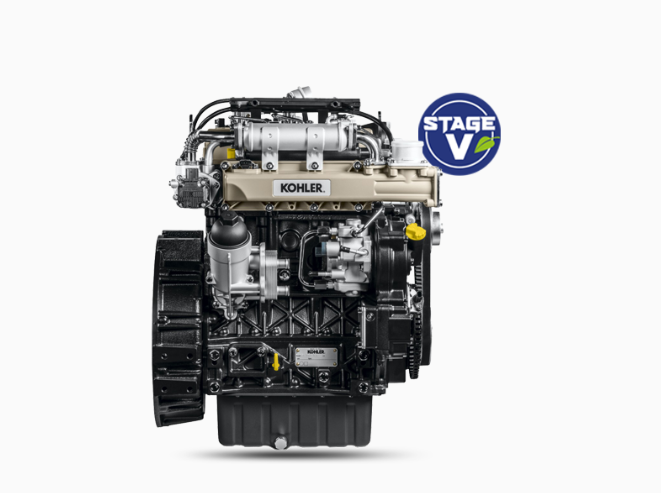

Kohler KDI 1903 TCA, Diesel Common Rail Direct Injection, Turbo Intercooler, 3 Cylinders, 1861 cc, Liquid Cooling, Stage V

Maximum Horsepower

49 HP (36 kW) @ 2600 RPM

Maximum Torque

190 Nm @ 1500 RPM

Transmission Type

24-Speed Synchronised Gearbox: 12 FWD and 12 REV with Synchronised Reverser

Clutch

Multidisc in Oil Bath

Specification

Details

Frame

Swinging Integral Chassis (±15°), OS-FRAME with Central Articulation

Braking System

Multidisc in Oil Bath with Mechanical Control, Acting on the Rear Wheels

Differential Lock

Front and Rear with Simultaneous Locking and Electro-Hydraulic Control

Specification

Details

Tyre Size (Front/Rear Combinations)

8.25-16, 210/95R16 (7.50-16), 250/80-18, 280/70R18, 280/70R18 Garden, 320/65R18, 260/70R20, 31x15.50-15 XTC, 31x15.50-15 STG, 33x15.50-15 XTC

Specification

Details

PTO Type

Independent from Gearbox, Synchronised with Forwarding Speed, Negative Safety Hydraulic Brake, Multidisc in Oil Bath Clutch with Electro-Hydraulic Control, 540 RPM

Hydraulic System

Dual Circuit with Independent Pumps, Hydraulic Pump Flow Rate of Power Steering and Electro-Hydraulic Controls 17.5 l/min, Hydraulic Pump Flow Rate of Lift and Control Valves 23 l/min, Maximum Hydraulic Pressure 180 bar

Rear Lift

By Two External Cylinders, Standard: Up/Down Lift, Optional: Position and Draft-Controlled, Ball Joint Lifting Capacity 1200 kg

Steering

Hydrostatic Steering Acting on the Central Joint, Flow Deviator for Steering Unit in Reversible Version

Electrical System

Battery 80 Ah / 12 V, Alternator 95 A, Vehicle Control Unit, Street Light and Indicator System, Single-Pole Dashboard Socket, Rear 7-Pin Socket

Weight

1700 kg (Roll-Bar)

Ground Clearance

200-275 mm

Wheelbase

1340 mm

Width

1002-1438 mm
