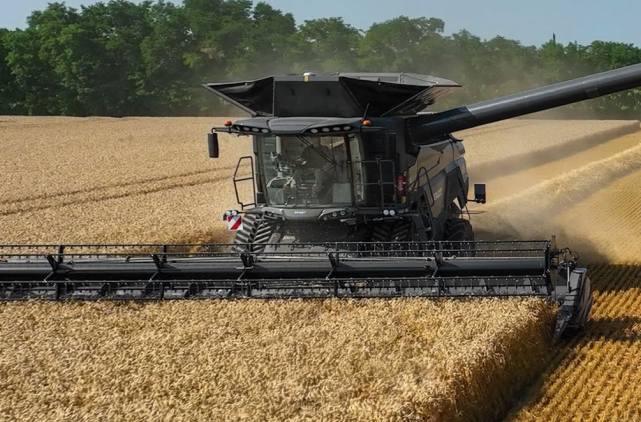

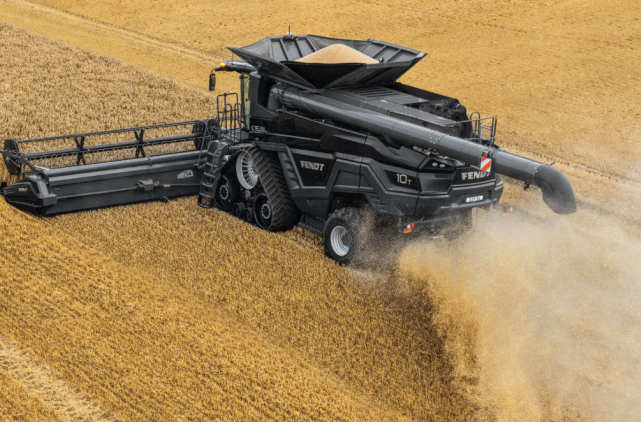

Fendt IDEAL 9T – 660 HP Combine Harvester with TrakRide for Enhanced Traction
Specifications
|
Specification |
Details |
|
Model |
Fendt IDEAL 9T |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, corn |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
MAN, 6 cylinders, 15.2 L, Stage V |
|
Gross Horsepower |
660 HP (485 kW) at 1800 rpm |
|
Transmission Type |
MotionShift gearbox, 2-speed, electrical gear shift, max speed 40 km/h, optional AllDrive 4WD, TrakRide crawler track, optional Heavy Duty Traction Drive, optional IDEALdrive joystick steering |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Optional front axle suspension |
Wheels & Tyres
|
Specification |
Details |
|
Wheels/Tyres |
TrakRide crawler track, 710/60R30 (36") |
Components & Features
|
Specification |
Details |
|
Threshing System |
Dual rotors, 600 mm diameter, 4838 mm length, 280-1160 rpm, 1.66 m² threshing area, 2.40 m² separation area, 4.06 m² total separation area |
|
Cleaning System |
Cyclone cleaning system, IDEALbalance grain pans, 2.98 m² top sieve, 2.42 m² lower sieve, 5.4 m² total sieve area, fan speed 150-1350 rpm, double ventilated steps, returns indicator, dust ejector in feeder channel |
|
Grain Tank |
17100 L (Streamer 210, 210 l/s), standard Streamer 140 (12500 L, 140 l/s), max unloading height 4.95 m, StreamerGates discharge rate adjustment |
|
Straw Chopper |
ShortCut (112 serrated knives), optional chopper change from cab, standard chaff spreader, optional ActiveSpread radial spreader or SwingFlow |
|
Header |
PowerFlow 10.7-12.2 m, optional Geringhoff/MacDon up to 13.7 m, 1220 cuts/min, TerraControl II guidance, automatic reel speed, optional electric rape knife, hydraulic reel drive, EHU, optional AutoDock, optional variable table drive, optional HP hydraulic cutting angle adjustment, 4 intake chains, hydraulic reverse, dust ejector |
|
Fuel Tank Capacity |
1000/1250/1500 L (diesel), 180 L (AdBlue) |
|
Width |
3290-3790 mm (without table) |
|
Length |
10632 mm (without table) |
|
Height |
3990 mm |
|
Features |
Vision cab, air-suspended driver seat, optional deluxe seat, automatic climate control, electrically adjustable heated mirrors, additional wide-angle mirror, optional full LED work lights, optional radio with MP3 and Bluetooth, rear-view camera, optional multi-camera system (with unloading tube and quad cam), cooler compartment, loss indicator, optional ProSound system, PowerFold swingable entry ladder, optional additional tablet holder, Fendt Variotronic with 10.4" Varioterminal, Fendt Dashboard, optional VarioDoc Pro, standard Fendt Connect, optional TI Headland, yield and moisture measurement, optional yield mapping, optional air compressor, optional variable table drive, optional IDEALdrive joystick steering, TrakRide crawler track, IDEALharvest automation, Ground Speed Automation, Predictive Automation, updated drive center with dual pump lubrication, reinforced structures, sealed transmission box |
