Specification

Details

Model

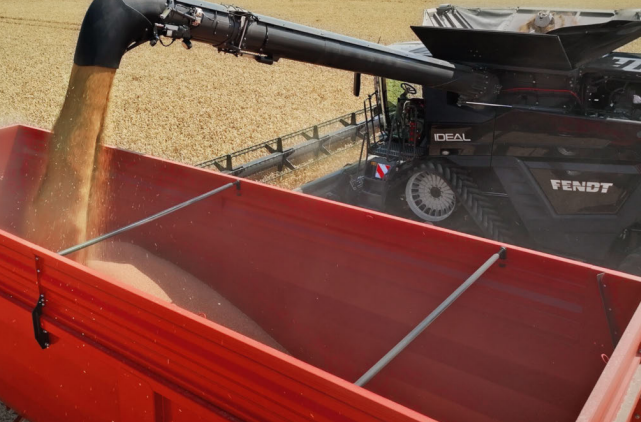

Fendt IDEAL 10T

Vehicle Category

Combine Harvester

Fuel Type

Diesel

Application

Grain, soybeans, corn

Specification

Details

Engine

MAN, 6 cylinders, 16.2 L, Stage V, Variable Turbine Geometry (VGT) turbocharger

Gross Horsepower

790 HP (581 kW) at 1800 rpm

Transmission Type

MotionShift gearbox, 2-speed, electrical gear shift, max speed 40 km/h, optional AllDrive 4WD, TrakRide crawler track, standard Heavy Duty Traction Drive, optional IDEALdrive joystick steering

Specification

Details

Suspension

Optional front axle suspension

Specification

Details

Wheels/Tyres

TrakRide crawler track, 660/85R24, 710/60R30, or 800/60R32 (26", 30", or 36")

Specification

Details

Threshing System

Dual Helix rotors, 600 mm diameter, 4838 mm length, 280-1160 rpm, 1.66 m² threshing area, 2.88 m² separation area with two additional separator concaves, 4.54 m² total separation area

Cleaning System

Cyclone cleaning system with 15% more capacity, IDEALbalance grain pans with WavePan curved double-drop steps, 2.98 m² top sieve, 2.42 m² lower sieve, 5.4 m² total sieve area, fan speed 250-1400 rpm, double ventilated steps, returns indicator, dust ejector in feeder channel

Grain Tank

17100 L (Streamer 210, 210 l/s), max unloading height 4.95 m, StreamerGates discharge rate adjustment, adjustable outlet spout

Straw Chopper

ShortCut (112 serrated knives), optional chopper change from cab, standard chaff spreader, standard ActiveSpread SwingFlow

Header

PowerFlow 10.7-12.2 m, optional Geringhoff/MacDon up to 13.7 m, 1220 cuts/min, TerraControl II guidance, automatic reel speed, optional electric rape knife, hydraulic reel drive, EHU (Eyeshot Hook Up), optional AutoDock (5-second coupling), optional variable table drive, optional HP hydraulic cutting angle adjustment, 4 intake chains, hydraulic reverse, dust ejector

Fuel Tank Capacity

1000/1250/1500 L (diesel), 180 L (AdBlue)

Width

3490 mm (without table)

Track Width

660 mm, 710 mm, or 800 mm (26", 30", or 36")

Length

10632 mm (without table)

Height

3990 mm

Features

Vision cab (6.19 sq/ft window, 73 dB noise level), air-suspended driver seat, optional deluxe seat, automatic climate control, electrically adjustable heated mirrors, additional wide-angle mirror, optional full LED work lights, optional radio with MP3 and Bluetooth, rear-view camera, optional multi-camera system (with unloading tube and quad cam), cooler compartment, loss indicator, optional ProSound system with subwoofer, PowerFold swingable entry ladder, optional additional tablet holder, Fendt Variotronic with 10.4" Varioterminal, Fendt Dashboard, optional VarioDoc Pro, standard Fendt Connect, optional TI Headland, yield and moisture measurement, optional yield mapping, optional air compressor, optional variable table drive, optional IDEALdrive joystick steering, IDEALharvest automation with Mass Acoustic Detection (MAD) sensors and Grain Quality Cam, Ground Speed Automation, Predictive Automation, updated drive center with dual pump lubrication, reinforced structures, sealed transmission box, lift cylinders (92 mm, 6.5 tonnes capacity), max ground clearance 1270 mm, crop elevator with +/-8° tilt compensation
