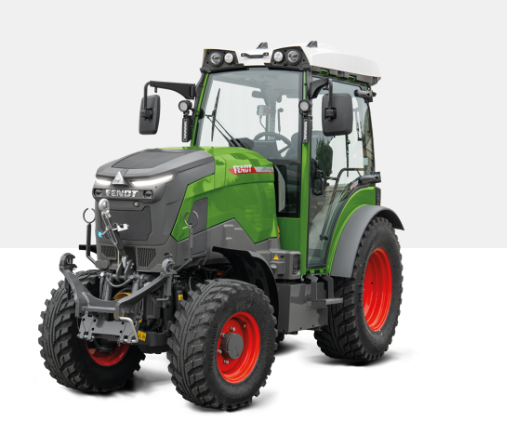

Fendt e107 V Vario – Electric Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
e107 V Vario |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Electric |
|
Application |
Agricultural Tractor (Vineyards, Greenhouses, Municipal) |
Frame & Drivetrain
|
Specification |
Details |
|
Rated Power (ECE R85) |
50 kW / 68 HP (Eco Mode) |
|
Continuous Power (ECE R85) |
55 kW / 75 HP (Dynamic Mode) |
|
Peak Power (ECE R85) |
66 kW / 90 HP (Dynamic+ Mode) |
|
Rated Speed |
2100 RPM |
|
Max Torque |
347 Nm @ 1400 RPM |
|
Battery Capacity |
100 kWh |
|
Transmission Type |
ML70 (Fendt Vario) |
|
Speed Range |
Forward: 0.02–40 km/h; Reverse: 0.02–25 km/h |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
280/70R16 inches (Option 2); 320/65R16 inches (Option 3) |
|
Rear Tyres |
360/70R24 inches (Option 2); 440/65R24 inches (Option 3) |
Components & Features
|
Specification |
Details |
|
Drive |
Electric Motor with Fendt Vario Transmission |
|
Rear PTO |
540/540E/1000 RPM; 540/750/Weg-ZW (Option) |
|
Front PTO |
1000 RPM (Option) |
|
Hydraulics Type |
Variable Flow Pump |
|
Hydraulic Pump |
48+71 l/min |
|
Max Valves |
0/6/4 (Front/Centre/Rear) |
|
Max Available Hydraulic Oil Volume |
25 Litres |
|
Max Lift Capacity (Rear) |
2775 daN |
|
Max Lift Capacity (Front) |
2395 daN |
|

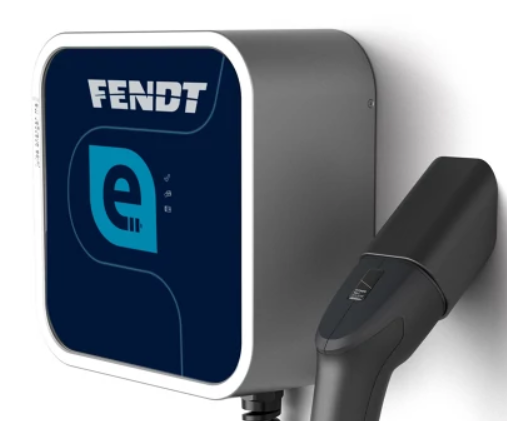

Charging Options |
AC (Type 2, 22 kW); DC Fast Charging (CCS, 80 kW) |
|
Front Track Width |
852 mm (Standard Tyres) |
|
Rear Track Width |
887 mm (Standard Tyres) |
|
Overall Width |
1278 mm (Standard Tyres) |
|
Overall Length |
3562 mm |
|
Height |
Approx. 2450 mm |
|
Ground Clearance |
273 mm |
|
Wheelbase |
2290 mm |
|
Total Weight |
4800 kg (Max Permissible) |
