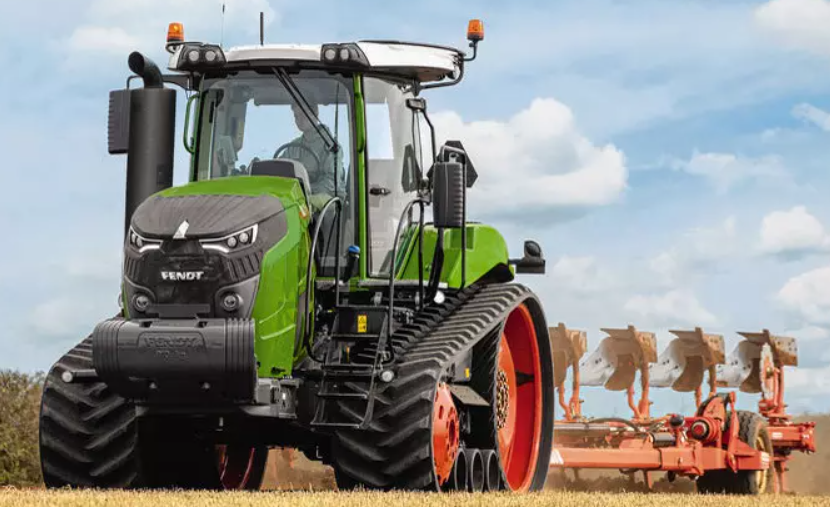

Fendt 940 Vario MT Gen2 – Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
940 Vario MT Gen2 |
|
Vehicle Category |
Tracked Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
298 kW / 405 HP (ECE R 120) |
|
Engine Capacity |
9800 CC |
|
Engine Rated RPM |
1700 |
|
Max Torque |
1806 Nm @ 1450 RPM |
|
Transmission Type |
TA 300T |
|
Speed Range |
Forward: 0–40 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
SmartRide, 11° Swing Angle; ConstantGrip Chassis Suspension |
Wheels & Tyres
|
Specification |
Details |
|
Front Tracks |
25 inches Standard AG; 25 inches Extreme AG (Option); 25 inches Extreme APP (Option); 30 inches Extreme AG (Option) |
|
Rear Tracks |
25 inches Standard AG; 25 inches Extreme AG (Option); 25 inches Extreme APP (Option); 30 inches Extreme AG (Option) |
Components & Features
|
Specification |
Details |
|
Drive |
Tracked |
|
Maximum Lifting Capacity |
11500 daN (Rear) |
|
Hydraulics Type |
Variable Flow Pump |
|
Hydraulic Pump |
220 l/min (Standard); 440 l/min (Option) |
|
Power Take Off |
1000/1000E RPM |
|
Track Width |
2997 mm (Standard Track) |
|
Wheel Base |
2565 mm |
|
Overall Length |
6124 mm |
|
Overall Width |
2997 mm (Standard Track) |
|
Height |
3496 mm (Comfort Cab) |
|
Ground Clearance |
370 mm |
|
Total Weight |
15169 kg (Unladen); 22500 kg (Max) |
|
Fuel Tank Capacity |
681 Litres (Diesel); 71 Litres (AdBlue) |
