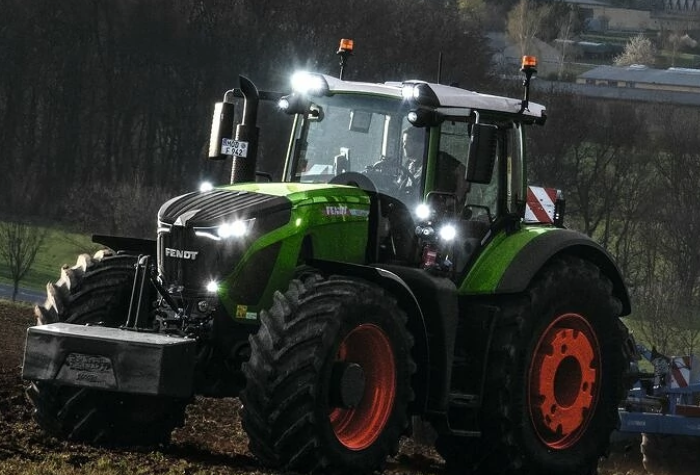

Fendt 939 Vario Gen7 – Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
939 Vario Gen7 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
283 kW / 385 HP (ECE R 120) |
|
Engine Capacity |
9037 CC |
|
Engine Rated RPM |
1700 |
|
Max Torque |
1850 Nm |
|
Torque Rise |
16.4% |
|
Transmission Type |
TA 300 |
|
Speed Range |
Forward: 0.02–60 km/h; Reverse: 0.02–33 km/h |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
600/70R34 inches |
|
Rear Tyres |
710/75R42 inches |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540E/1000 RPM; 1000/1000E RPM (Option) |
|
Front PTO |
1000 RPM (Option) |
|
Hydraulics Type |
Variable Flow Pump |
|
Hydraulic Pump |
165 l/min (Standard); 220 l/min (Option 1); 220+210 l/min (Option 2) |
|
Max Valves (Power) |
0/0/4 (Front/Centre/Rear) |
|
Max Valves (Power+) |
0(1)/0/5(4) (Front/Centre/Rear) |
|
Max Valves (Profi/Profi+) |
2/0/6 (Front/Centre/Rear) |
|
Max Available Hydraulic Oil Volume |
90 Litres |
|
Max Lift Capacity (Rear) |
12410 daN |
|
Max Lift Capacity (Front) |
5584 daN |
|
Electrical System |
180 Ah, 12V Battery; 14V, 275 Amp Alternator |
|
Front Track Width |
2100 mm (Standard Tyres) |
|
Rear Track Width |
2000 mm (Standard Tyres) |
|
Overall Width |
2710 mm (Standard Tyres) |
|
Height |
3377 mm (Without Fendt Guide); 3417 mm (With Fendt Guide) |
|
Ground Clearance |
578 mm |
|
Wheelbase |
3150 mm |
|
Total Weight |
11400 kg (Unladen); 20000 kg (Max, 40 km/h); 19000 kg (Max, 50 km/h); 17000 kg (Max, 60 km/h) |
|
Fuel Tank Capacity |
625 Litres (Diesel); 70 Litres (AdBlue) |
