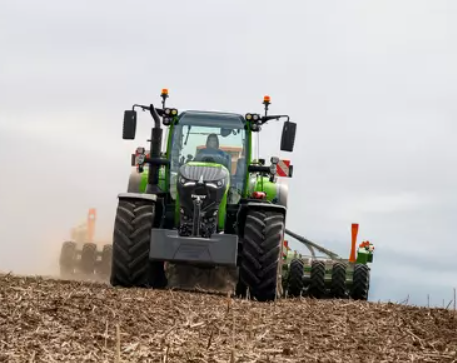

Fendt 724 Vario Gen7 – Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
724 Vario Gen7 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
179 kW / 243 HP (ECE R 120) |
|
Engine Capacity |
7527 CC |
|
Engine Rated RPM |
1700 |
|
Max Torque |
1220 Nm @ 1300 RPM |
|
Torque Rise |
21.0% |
|
Transmission Type |
TA 190 |
|
Speed Range |
Forward: 0.02–50 km/h; Reverse: 0.02–33 km/h |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
540/65R30 inches (Standard); 600/65R28 inches (Option 1); 540/65R34 inches (Option 2); 600/70R30 inches (Option 3) |
|
Rear Tyres |
650/65R42 inches (Standard); 710/70R38 inches (Option 1); 650/85R38 inches (Option 2); 710/70R42 inches (Option 3) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540/540E/1000/1000E RPM |
|
Front PTO |
1000 RPM (Option) |
|
Hydraulics Type |
Variable Flow Pump |
|
Hydraulic Pump |
165 l/min (Standard); 220 l/min (Option 1) |
|
Max Valves (Power) |
1/3/4 (Front/Centre/Rear) |
|
Max Valves (Power+) |
1/3/5 (Front/Centre/Rear) |
|
Max Valves (Profi/Profi+) |
2/3/5 (Front/Centre/Rear) |
|
Max Available Hydraulic Oil Volume |
80 Litres |
|
Max Lift Capacity (Rear) |
11050 daN |
|
Max Lift Capacity (Front) |
5300 daN |
|
Electrical System |
180 Ah, 12V Battery; 14V, 240 Amp Alternator |
|
Front Track Width |
2000 mm (Standard Tyres) |
|
Rear Track Width |
1920 mm (Standard Tyres) |
|
Overall Width |
2570 mm (Standard Tyres) |
|
Overall Length |
5516 mm |
|
Height |
3142 mm (Without Fendt Guide); 3192 mm (With Fendt Guide) |
|
Ground Clearance |
570 mm |
|
Wheelbase |
2900 mm |
|
Total Weight |
8350 kg (Unladen); 8800–9250 kg (Operating); 15000 kg (Max, 40 km/h); 15000 kg (Max, 50 km/h); 14000 kg (Max, 60 km/h) |
|
Fuel Tank Capacity |
450 Litres (Standard); 484 Litres (Optional); 48 Litres (AdBlue) |
