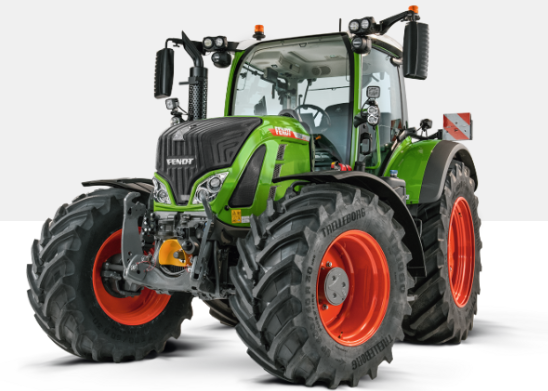

Fendt 724 Vario Gen6 – Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
724 Vario Gen6 |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
181 kW / 246 HP (ECE R 120) |
|
Engine Capacity |
6056 CC |
|
Engine Rated RPM |
2100 |
|
Max Torque |
1072 Nm @ 1500 RPM |
|
Torque Rise |
38.0% |
|
Transmission Type |
ML 180 |
|
Speed Range |
Forward: 0.02–28 km/h (Range 1), 0.02–50 km/h (Range 2); Reverse: 0.02–17 km/h (Range 1), 0.02–33 km/h (Range 2) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
540/65R30 inches (Standard); 600/65R28 inches (Option 1); 600/65R28 inches (Option 2); 600/60R30 inches (Option 3) |
|
Rear Tyres |
650/65R42 inches (Standard); 710/70R38 inches (Option 1); 650/75R38 inches (Option 2); 710/60R42 inches (Option 3) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540/540E/1000/1000E RPM |
|
Front PTO |
1000 RPM (Option) |
|
Hydraulics Type |
Variable Flow Pump |
|
Hydraulic Pump |
109 l/min (Standard); 152 l/min (Option 1); 193 l/min (Option 2) |
|
Max Valves (Power/Power Plus) |
1/0/4 (Front/Centre/Rear) |
|
Max Valves (Profi/Profi+) |
2/0/5 (Front/Centre/Rear) |
|
Max Available Hydraulic Oil Volume |
64 Litres |
|
Max Lift Capacity (Rear) |
10360 daN |
|
Max Lift Capacity (Front) |
4418 daN |
|
Electrical System |
180 Ah, 12V Battery; 14V, 200 Amp Alternator |
|
Front Track Width |
1950 mm (Standard Tyres) |
|
Rear Track Width |
1920 mm (Standard Tyres) |
|
Overall Width |
2550 mm (Standard Tyres) |
|
Overall Length |
5240 mm |
|
Height |
3050 mm (Without Fendt Guide); 3099 mm (With Fendt Guide) |
|
Ground Clearance |
506 mm |
|
Wheelbase |
2783 mm |
|
Total Weight |
7980 kg (Unladen); 14000 kg (Max, 40 km/h); 14000 kg (Max, 50 km/h) |
|
Fuel Tank Capacity |
400 Litres (Diesel); 38 Litres (AdBlue) |
