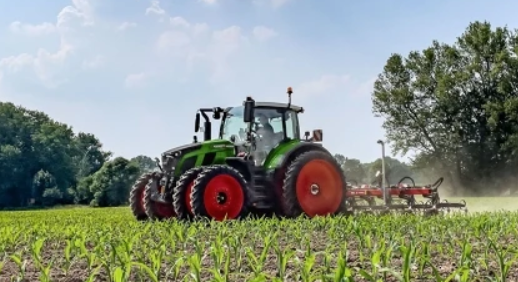

Fendt 620 Vario – Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
620 Vario |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
154 kW / 209 HP (Rated); 165 kW / 224 HP (Max with DP, ECE R 120) |
|
Engine Capacity |
5017 CC |
|
Engine Rated RPM |
1900 |
|
Max Torque |
950 Nm |
|
Transmission Type |
TA 150 (VarioDrive CVT) |
|
Speed Range |
Forward: 0.02–50 km/h; Reverse: 0.02–33 km/h |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
540/65R30 inches |
|
Standard Tyres Rear |
650/65R42 inches |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540/540E/1000/1000E RPM |
|
Front PTO |
1000 RPM (Option) |
|
Hydraulics Type |
Variable Flow Pump |
|
Hydraulic Pump |
152 l/min (Standard); 205 l/min (Option 1) |
|
Max Valves (Power) |
1/2/4 (Front/Centre/Rear) |
|
Max Valves (Power+) |
1/2/5 (Front/Centre/Rear) |
|
Max Valves (Profi/Profi+) |
2/3/5 (Front/Centre/Rear) |
|
Max Available Hydraulic Oil Volume |
65 Litres |
|
Max Lift Capacity (Rear) |
9790 daN |
|
Max Lift Capacity (Front) |
4418 daN |
|
Electrical System |
180 Ah, 12V Battery; 14V, 220 Amp Alternator |
|
Front Track Width |
1950 mm (Standard Tyres) |
|
Rear Track Width |
1870 mm (Standard Tyres) |
|
Overall Width |
2550 mm (Standard Tyres) |
|
Total Height |
3076 mm (Without Fendt Guide); 3125 mm (With Fendt Guide) |
|
Ground Clearance |
530 mm |
|
Wheelbase |
2720 mm |
|
Small Turning Radius |
10.1 m (Standard Tyres) |
|
Total Weight |
7740 kg (Operating, +/- 5%); 13500 kg (Max) |
|
Fuel Tank Capacity |
347 Litres (Diesel); 36 Litres (AdBlue) |
