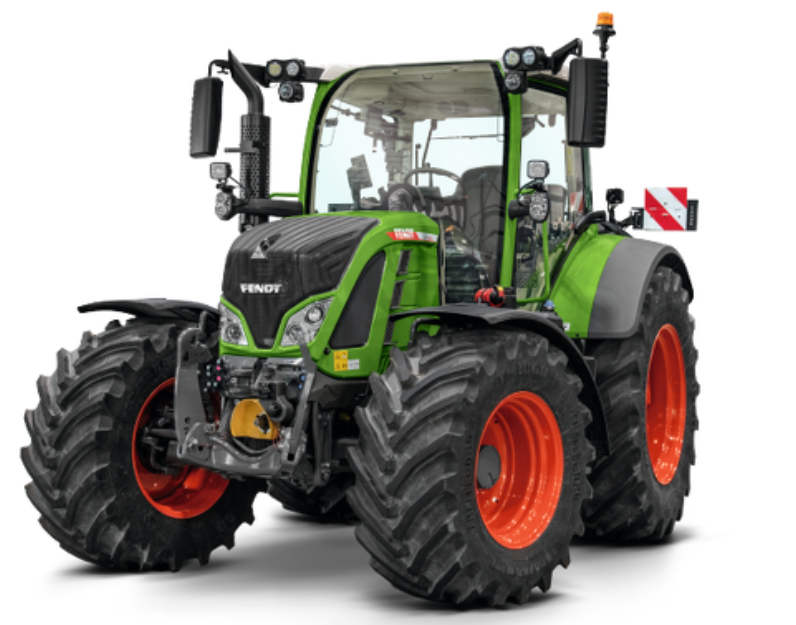

Fendt 516 Vario – Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
516 Vario |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
126 kW / 171 HP (ECE R 120) |
|
Engine Capacity |
4038 CC |
|
Engine Rated RPM |
2100 |
|
Max Torque |
699 Nm @ 1500 RPM |
|
Torque Rise |
28.0% |
|
Transmission Type |
ML 90 |
|
Speed Range |
Forward: 0.02–28 km/h (Range 1), 0.02–50 km/h (Range 2); Reverse: 0.02–17 km/h (Range 1), 0.02–33 km/h (Range 2) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
540/65R28 inches (Standard); 480/65R28 inches (Option 1); 16.9R28 inches (Option 2); 480/70R28 inches (Option 3) |
|
Rear Tyres |
650/65R38 inches (Standard); 600/65R38 inches (Option 1); 20.8R38 inches (Option 2); 580/70R38 inches (Option 3) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540/540E/1000 RPM; 540E/1000/1000E RPM (Option) |
|
Front PTO |
1000 RPM (Option) |
|
Hydraulics Type |
Variable Flow Pump |
|
Hydraulic Pump |
75 l/min (Standard); 110 l/min (Option 1); 158 l/min (Option 2) |
|
Max Valves (Power/Power+) |
0/0/4 or 1/0/3 (Front/Centre/Rear) |
|
Max Valves (Profi/Profi+) |
2/0/5 (Front/Centre/Rear) |
|
Max Valves Available as Option |
2/0/5 (Front/Centre/Rear) |
|
Max Available Hydraulic Oil Volume |
55 Litres |
|
Max Lift Capacity (Rear) |
7890 daN |
|
Max Lift Capacity (Front) |
3420 daN |
|
Electrical System |
14V, 200 Amp Alternator |
|
Front Track Width |
1880 mm (Standard Tyres) |
|
Rear Track Width |
1860 mm (Standard Tyres) |
|
Overall Width |
2505 mm (Standard Tyres) |
|
Overall Length |
4453 mm |
|
Height |
2965 mm (Without Fendt Guide); 3015 mm (With Fendt Guide) |
|
Ground Clearance |
530 mm |
|
Wheelbase |
2560 mm |
|
Total Weight |
6400 kg (Unladen); 10500 kg (Max, 40 km/h); 10500 kg (Max, 50 km/h) |
|
Fuel Tank Capacity |
298 Litres (Diesel); 31 Litres (AdBlue) |
