Fendt 210 Vario F – Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
210 Vario F |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|

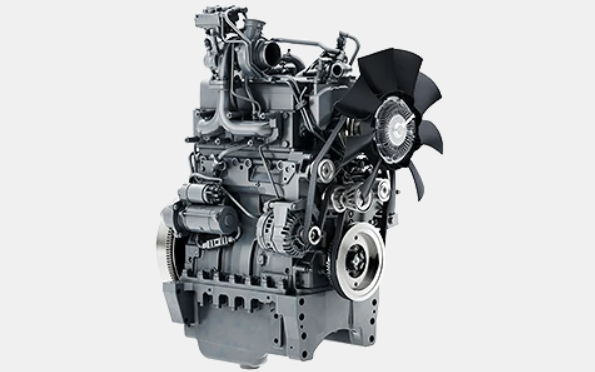

Engine Power |
77 kW / 104 HP (ECE R 120) |
|
Engine Capacity |
3300 CC |
|
Engine Rated RPM |
2100 |
|
Max Torque |
428 Nm @ 1600 RPM |
|
Torque Rise |
30.0% |
|
Transmission Type |
ML70 |
|
Speed Range |
Forward: 0.02–40 km/h; Reverse: 0.02–25 km/h |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
280/70R20 inches (Standard); 11LR16 inches (Option 1); 280/70R20 inches (Option 2); 320/65R18 inches (Option 3) |
|
Rear Tyres |
340/85R28 inches (Standard); 420/70R24 inches (Option 1); 420/70R24 inches (Option 2); 420/70R24 inches (Option 3) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540/540E/1000 RPM; 540/540E/4.8 (Option) |
|
Front PTO |
1000 RPM (Option) |
|
Hydraulics Type |
Dual Hydraulic Pump; Variable Flow Pump |
|
Hydraulic Pump |
33+42 l/min (Dual); 48+71 l/min (Variable Flow) |
|
Max Valves (Power) |
0/4/4 (Front/Centre/Rear) |
|
Max Valves (Profi/Profi+) |
0/7/4 (Front/Centre/Rear) |
|
Max Valves Available |
0/7/4 (Front/Centre/Rear) |
|
Max Available Hydraulic Oil Volume |
25 Litres |
|
Max Lift Capacity (Rear) |
2417 daN |
|
Max Lift Capacity (Front) |
2380 daN |
|
Electrical System |
50 Ah, 12V Battery; 14V, 120 Amp Alternator |
|
Front Track Width |
1064 mm (Standard Tyres) |
|
Rear Track Width |
1000 mm (Standard Tyres) |
|
Overall Width |
1367 mm (Standard Tyres) |
|
Overall Length |
3813 mm |
|
Height |
2470 mm (Without Fendt Guide); 2580 mm (With Fendt Guide) |
|
Ground Clearance |
323 mm |
|
Wheelbase |
2290 mm |
|
Total Weight |
3140 kg (Unladen); 4800 kg (Max, 40 km/h) |
|
Fuel Tank Capacity |
68 Litres (Standard); 83 Litres (Optional); 16 Litres (AdBlue) |
