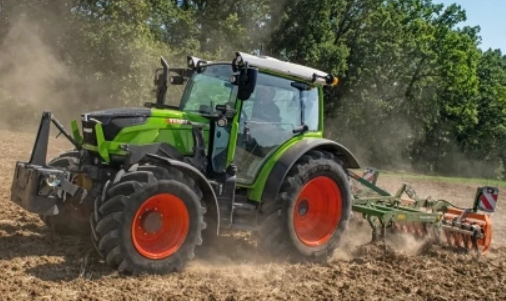

Fendt 208 Vario – Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
208 Vario |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Power |
60 kW / 82 HP (Rated, ECE R 120); 62 kW / 84 HP (Max, ECE R 120) |
|
Engine Capacity |
3300 CC |
|
Engine Rated RPM |
2100 |
|
Max Torque |
348 Nm at 1600 RPM |
|
Torque Rise |
28.0% |
|
Transmission Type |
ML75 (VarioDrive CVT) |
|
Speed Range |
Forward: 0.02–40 km/h; Reverse: 0.02–25 km/h |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres (Standard) |
320/70R24 inches |
|
Standard Tyres Rear |
480/70R30 inches |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Rear PTO |
540/540E/1000 RPM; 540/1000/4.0 RPM (Option, including ground speed PTO) |
|
Front PTO |
1000 RPM (Option) |
|
Hydraulics Type |
Dual Hydraulic Pump; Variable Flow Pump |
|
Hydraulic Pump |
33+42 l/min (Dual); 42+71 l/min (Variable Flow) |
|
Max Valves (Standard) |
0/0/4 (Front/Centre/Rear) |
|
Max Valves (Optional) |
1/0/3 (Front/Centre/Rear) |
|
Max Available Hydraulic Oil Volume |
28 Litres |
|
Max Lift Capacity (Rear) |
4204 daN |
|
Max Lift Capacity (Front) |
2540 daN |
|
Electrical System |
100 Ah, 12V Battery; 14V, 120 Amp Alternator |
|
Front Track Width |
1500 mm (Standard Tyres) |
|
Rear Track Width |
1655 mm (Standard Tyres) |
|
Overall Width |
2170 mm (Standard Tyres) |
|
Total Height |
2570 mm (Without Fendt Guide); 2660 mm (With Fendt Guide) |
|
Ground Clearance |
475 mm |
|
Wheelbase |
2370 mm |
|
Maximum Diameter Rear Tyre |
1600 mm |
|
Total Weight |
4140 kg (Unladen, Base Tractor with Cab, Full Tanks, Without Driver); 7500 kg (Max, 40 km/h) |
|
Fuel Tank Capacity |
125 Litres (Diesel); 16 Litres (AdBlue) |
