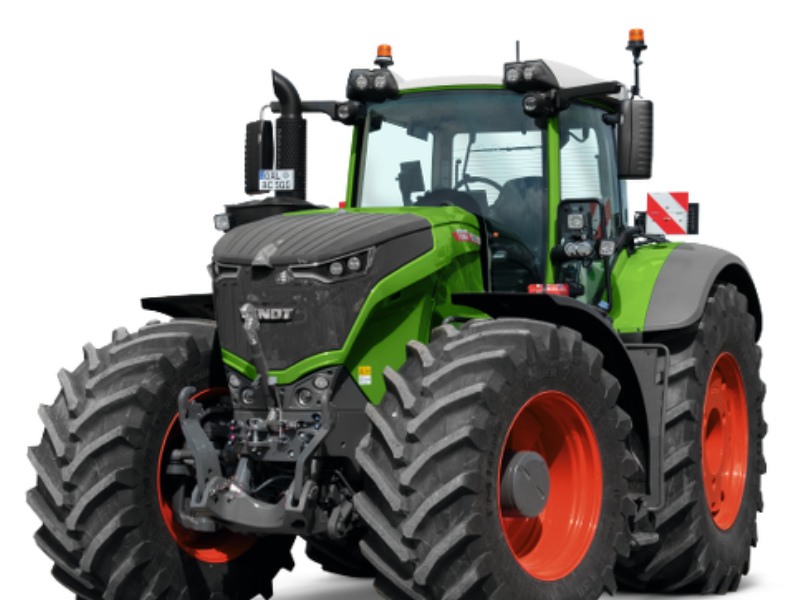

Fendt 1046 Vario – Agricultural Tractor by Fendt
Specifications
|
Specification |
Details |
|
Tractor Model |
1046 Vario |
|
Vehicle Category |
Tractor |
|
Fuel Type |
Diesel |
|
Application |
Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Type |
6 Cylinder, Turbocharged, Intercooled with AGR, VTG, DOC/DPF, SCR |
|
Engine Power |
350 kW / 476 HP (ECE R 120) |
|
Number of Cylinders |
Six |
|
Engine Capacity |
12419 CC |
|
Engine Rated RPM |
1700 |
|
Max Torque |
2325 Nm |
|
Torque Rise |
17.0% |
|
Transmission Type |
TA 400 (VarioDrive) |
|
Speed Range |
Forward: 0.02–60 km/h; Reverse: 0.02–33 km/h |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Wet Disc |
Wheels & Tyres
|
Specification |
Details |
|

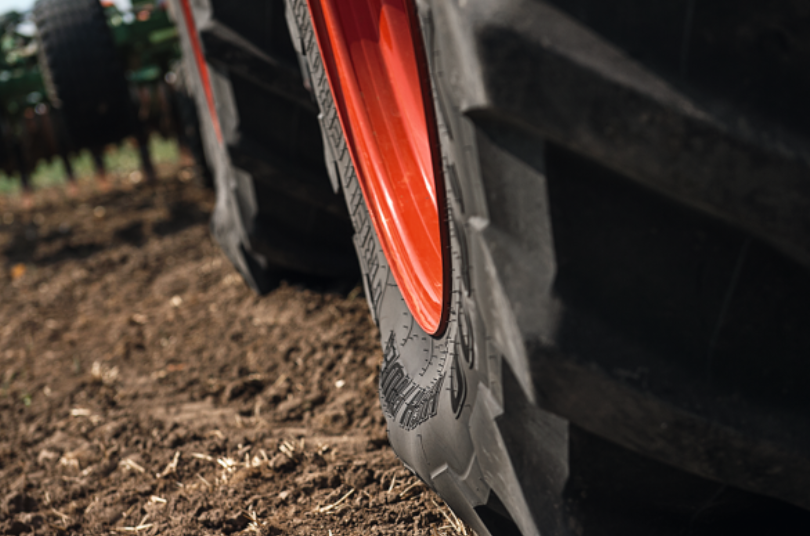

Front Tyres |
650/65R38 inches (Standard); 710/60R38 inches (Option) |
|
Rear Tyres |
750/75R46 inches (Standard); 900/65R46 inches (Option) |
Components & Features
|
Specification |
Details |
|
Drive |
4WD |
|
Maximum Lifting Capacity |
12920 daN (Rear); 5584 daN (Front) |
|
Hydraulics Type |
Variable Flow Pump |
|
Hydraulic Pump |
165 l/min (Standard); 220 l/min (Option 1); 220+210 l/min (Option 2) |
|
Power Take Off |
1000/1000E/1300 RPM |
|
Total Weight |
14000 kg (Unladen); 23000 kg (Max, 40 km/h); 21000 kg (Max, 50 km/h); 18000 kg (Max, 60 km/h) |
|
Electrical System |
180 Ah, 12V Battery; 14V, 270 Amp Alternator |
|
Fuel Tank Capacity |
740 Litres (Diesel); 84 Litres (AdBlue) |
|
Wheel Base |
3300 mm |
|
Overall Length |
6350 mm |
|
Overall Width |
2750 mm |
|
Height |
3570 mm (Without Fendt Guide); 3606 mm (With Fendt Guide) |
|
Ground Clearance |
600 mm |
|
Turning Radius |
7.33 m |
