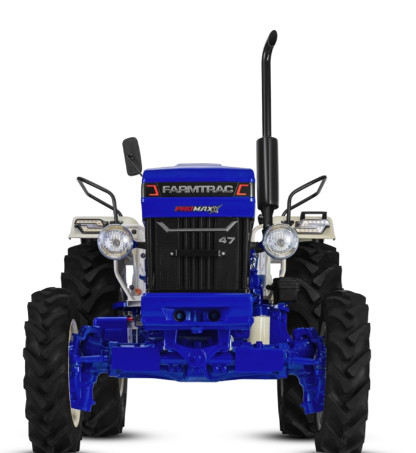

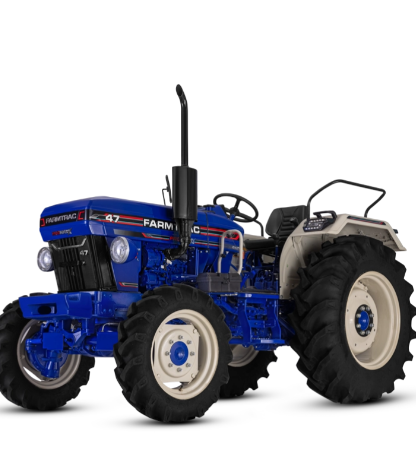

FARMTRAC 47 Promaxx – 2WD/4WD Agricultural Tractor by Farmtrac
Specifications
|
Specification |
Details |
|
Tractor Model |
FARMTRAC 47 Promaxx |
|
Vehicle Category |
2WD/4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD/4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Engine Power |
35.04 kW (47 HP) |
|
Maximum Torque |
199 Nm |
|
Engine Capacity |
2760 cc |
|
Clutch |
Dual/Double Clutch with ITPO Lever (2WD/4WD) |
|
Transmission Type |
Fully Constant Mesh |
|
Drive Type |
2WD/4WD |
|
Number of Gears |
12 Forward + 3 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Disc Type, Oil Immersed Brakes (OIB) |
|
Steering Type |
Balanced Power Steering (2WD/4WD) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
16.51 cm x 40.64 cm (6.5 inch x 16 inch) (2WD)/21.08 cm x 50.8 cm (8.3 inch x 20 inch) (4WD) |
|
Rear Tyres |
37.84 cm x 71.12 cm (14.9 inch x 28 inch) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
2000 kg |
|
PTO Speed |
540 RPM with MRPTO |
|
Fuel Tank Capacity |
50 litres |
|
Front Axle Type |
Adjustable Axle (2WD)/EKL Portal Axle (4WD) |
|
Rear Axle Type |
EPI Reduction |
|
Overall Width |
1850 mm (2WD)/1870 mm (4WD) |
|
Overall Length |
3560 mm (2WD)/3465 mm (4WD) |
|
Overall Height |
2250 mm (2WD)/2296 mm (4WD) |
|
Ground Clearance |
425 mm (2WD)/380 mm (4WD) |
|
Wheel Base |
2006 mm (2WD)/1965 mm (4WD) |
|
Total Weight |
2060 kg (2WD)/2376 kg (4WD) |
|
Service Interval |
500 Hrs |
|
Engine Type |
Optimaxx Technology Engine |
|
Gearbox Feature |
12F + 3R Fully Constant Mesh Gearbox with Helical Gears |
|
Hydraulic Feature |
SmartPro Lift-Switch |
|
Rear Axle Feature |
Robust EPI Reduction |
|
Brake Feature |
Advanced Force Feed & Spray Lubrication on Gears & Brakes |
|
4WD Axle Feature |
4WD Technology with Sealed Portal Axle |
|
PTO Feature |
Elevated PTO Height |
|
PTO & Rear Axle Feature |
Cassette Type Sealed in PTO & Rear Axle |
|
Style Feature |
PROMAXX - Robust Build & Look |
|
Style Feature |
Single Piece-Bonnet Opening |
|
Style Feature |
LED Plough Lamp & Tail Light |
|
Style Feature |
Bigger & Premium Gear Knob With Chrome Finishing |
|
Comfort Feature |
MaxxSpace Platform with Premium Floor Mat |
|
Comfort Feature |
Side Shift |
|
Comfort Feature |
Maxx-Heat Guard with Hot Air Deflector |
|
Comfort Feature |
SPT (Soft Press Technology) Pedals |
|
Utility Feature |
Dry Type Air Cleaner with Clog Indicator |
|
Utility Feature |
Sealed - Clutch Housing with Self-Lubricating Bush |
|
Utility Feature |
Heavy Duty Rear Tow Hook With 12 Settings |
|
Wheelbase Feature |
Best in Class - Bigger Wheelbase |
|
Gear Feature |
1st & Reverse - Inline Gear |
