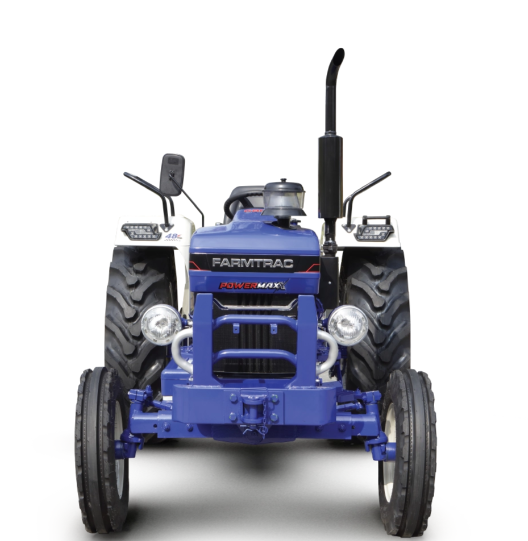

FARMTRAC 45 PROMAXX 2WD/4WD – 2WD/4WD Agricultural Tractor by FARMTRAC
Specifications
|
Specification |
Details |
|
Tractor Model |
FARMTRAC 45 PROMAXX |
|
Vehicle Category |
2WD/4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD/4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Clutch Type |
Single/Dual/Double with ITPO Lever (Optional Variant) |
|
Transmission Type |
Fully Constant Mesh |
|
Drive Type |
2WD/4WD |
|
Number of Gears |
12 Forward + 3 Reverse |
|
Power Range |
33.55 kW (45 HP) |
|
Maximum Torque |
192 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Disc Type, Oil Immersed |
|
Steering Type |
Single Acting - Power Steering/Balanced Power Steering (Optional Variant) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6 x 16 inch, 6.5 x 16 inch (2WD); 8 x 18 inch (4WD) |
|
Rear Tyres |
13.6 x 28 inch, 14.9 x 28 inch (2WD); 13.6 x 28 inch (4WD) |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
2000 kg |
|
PTO RPM |
Standard 540/MRPTO |
|
Fuel Tank Capacity |
50 L |
|
Front Axle Type |
Fixed/Adjustable (Optional Variant) (2WD); Portal Axle (4WD) |
|
Rear Axle Type |
EPI Reduction |
|
Power Steering |
Power steering |
|
Overall Length |
3570 mm (2WD); 3450 mm (4WD) |
|
Overall Width |
1845 mm (2WD); 1830 mm (4WD) |
|
Overall Height |
2250 mm (2WD); 2275 mm (4WD) |
|
Ground Clearance |
425 mm (2WD); 370 mm (4WD) |
|
Wheel Base |
1995 mm (2WD); 1980 mm (4WD) |
|
Weight |
2060 kg (2WD); 2240 kg (4WD) |
|
Engine Type |
Optimaxx Technology |
|
Engine Displacement |
Best in Class - 2760 cc |
|
Gearbox Feature |
12F + 3R Fully Constant Mesh with Helical Gears |
|
Hydraulic Feature |
SmartPro Lift-Switch |
|
Lubrication System |
Advanced Force Feed & Spray Lubrication on Gears & Brakes |
|
Build Feature |
PROMAXX - Robust Build & Look |
|
Bonnet Feature |
Single Piece-Bonnet Opening |
|
Lighting Feature |
LED Plough Lamp & Tail Light |
|
Gear Knob Feature |
Bigger & Premium Gear Knob With Chrome Finishing |
|
PTO Feature |
Elevated PTO Height |
|
Gear Feature |
1st & Reverse - Inline Gear |
|
Tow Hook Feature |
Heavy Duty Rear Tow Hook With 12 Settings |
|
Service Interval |
500 Hrs |
|
Air Cleaner Feature |
Dry Type Air Cleaner with Clog Indicator |
|
Sealing Feature |
Cassette Type Sealed in PTO & Rear Axle |
|
Clutch Housing Feature |
Sealed - Clutch Housing with Self-Lubricating Bush |
|
Platform Feature |
MaxxSpace Platform with Premium Floor Mat |
|
Gear Shift Feature |
Side Shift |
|
Heat Guard Feature |
Maxx- Heat Guard with Hot Air Deflector |
|
Pedal Feature |
SPT (Soft Press Technology) Pedals |
