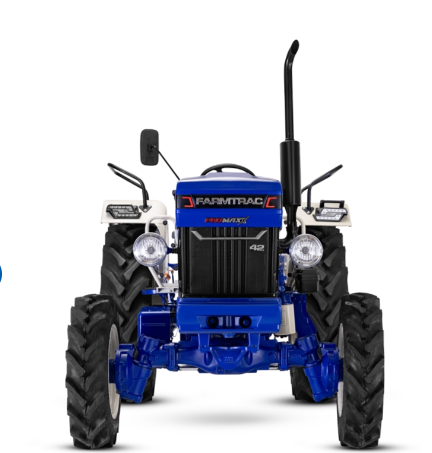

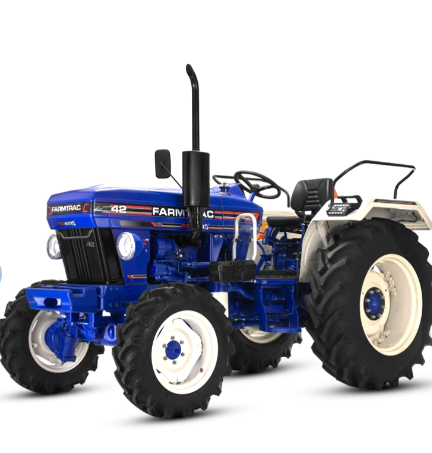

FARMTRAC 42 Promaxx – 2WD/4WD Agricultural Tractor by Farmtrac
Specifications
|
Specification |
Details |
|
Tractor Model |
FARMTRAC 42 Promaxx |
|
Vehicle Category |
2WD/4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD/4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Engine Power |
31.31 kW (42 HP) |
|
Maximum Torque |
176 Nm |
|
Clutch |
Single/Dual Clutch (2WD), Dual/Double Clutch with ITPO Lever (4WD) |
|
Transmission Type |
Fully Constant Mesh |
|
Drive Type |
2WD/4WD |
|
Number of Gears |
12 Forward + 3 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Disc Type, Oil Immersed Brakes (OIB) |
|
Steering Type |
Single Acting Power Steering/Balanced Power Steering (2WD), Balanced Power Steering (4WD) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
15.24 cm x 40.64 cm (6 inch x 16 inch) (2WD)/20.32 cm x 45.72 cm (8 inch x 18 inch) (4WD) |
|
Rear Tyres |
34.54 cm x 71.12 cm (13.6 inch x 28 inch) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
1800 kg |
|
PTO Speed |
540 RPM with MRPTO |
|
Fuel Tank Capacity |
50 litres |
|
Front Axle Type |
Fixed/Adjustable Axle (2WD), Portal Axle (4WD) |
|
Rear Axle Type |
EPI Reduction |
|
Overall Width |
1750 mm (2WD)/1745 mm (4WD) |
|
Overall Length |
3570 mm (2WD)/3455 mm (4WD) |
|
Overall Height |
2230 mm (2WD)/2270 mm (4WD) |
|
Ground Clearance |
410 mm (2WD)/370 mm (4WD) |
|
Wheel Base |
2005 mm (2WD)/1995 mm (4WD) |
|
Total Weight |
1960 kg (2WD)/2152 kg (4WD) |
