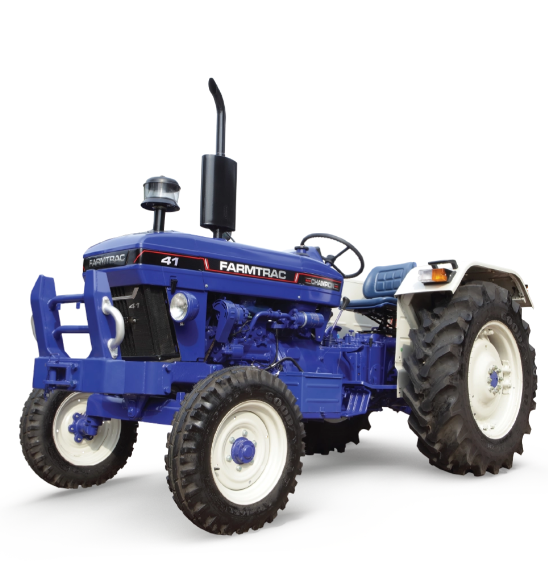

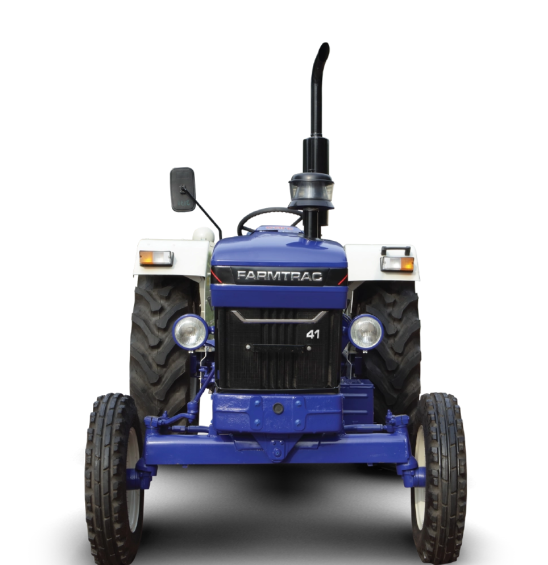

FARMTRAC 41 CHAMPION 2WD – 2WD Agricultural Tractor by FARMTRAC
Specifications
|
Specification |
Details |
|
Tractor Model |
FARMTRAC 41 CHAMPION |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Clutch Type |
Single/Dual |
|
Transmission Type |
Constant Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
|
Power Range |
30.57 kW (41 HP) |
|
Maximum Torque |
154 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Mechanical/Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6 x 16 inch |
|
Rear Tyres |
13.6 x 28 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1800 kg |
|
PTO RPM |
Standard 540/MRPTO |
|
Fuel Tank Capacity |
50 L |
|
Front Axle Type |
Fixed/Adjustable |
|
Rear Axle Type |
Single Reduction |
|
Power Steering (Optional) |
Optional power steering |
|
Overall Length |
3315 mm |
|
Overall Width |
1735 mm |
|
Overall Height |
2240 mm |
|
Ground Clearance |
390 mm |
|
Wheel Base |
2100 mm |
|
Weight |
1940 kg |
