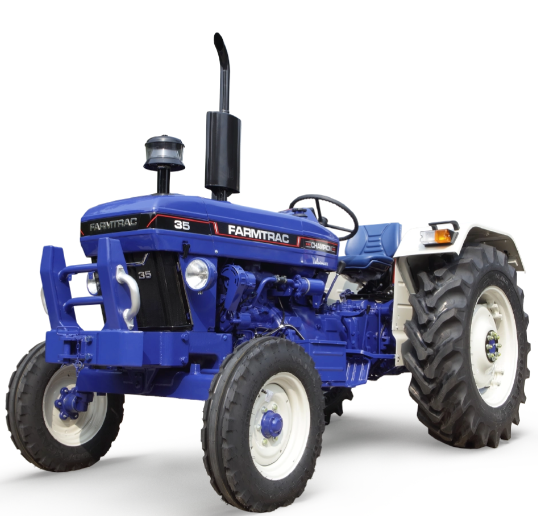

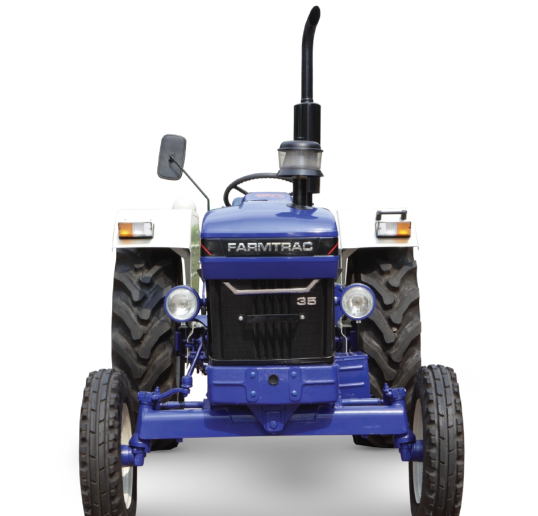

FARMTRAC 35 Champion – 2WD Agricultural Tractor by Farmtrac
Specifications
|
Specification |
Details |
|
Tractor Model |
FARMTRAC 35 Champion |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Engine Power |
26.09 kW (35 HP) |
|
Maximum Torque |
148 Nm |
|
Clutch |
Single |
|
Transmission Type |
Constant Mesh |
|
Drive Type |
2WD |
|
Number of Gears |
8 Forward + 2 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Mechanical/Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6 x 16 inch (15.24 x 40.64 cm) |
|
Rear Tyres |
13.6 x 28 inch (34.54 x 71.12 cm) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
1500 kg |
|
PTO Speed |
540 RPM |
|
Fuel Tank Capacity |
50 litres |
|
Front Axle Type |
2 Wheel Drive Axle |
|
Rear Axle Type |
Single Reduction |
|
Overall Width |
1710 mm |
|
Overall Length |
3315 mm |
|
Overall Height |
2215 mm |
|
Ground Clearance |
377 mm |
|
Wheel Base |
2100 mm |
|
Total Weight |
1940 kg |
