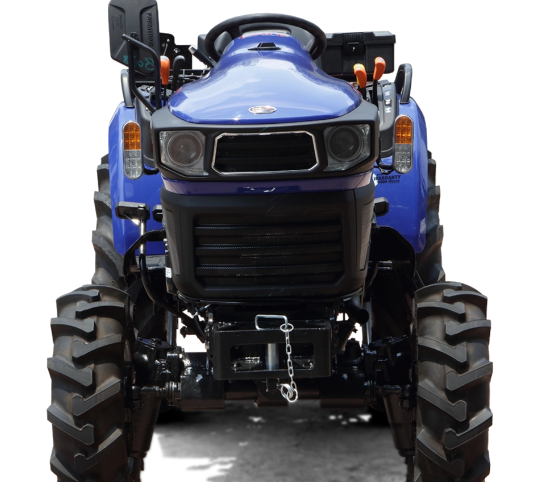

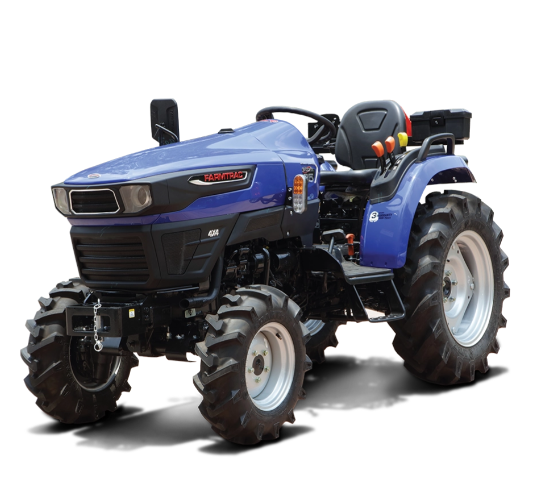

FARMTRAC 35 Atom – 4WD Agricultural Tractor by Farmtrac
Specifications
|
Specification |
Details |
|
Tractor Model |
FARMTRAC 35 Atom |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
4 |
|
Engine Power |
26.84 kW (36 HP) |
|
Maximum Torque |
108 Nm |
|
Clutch |
Single |
|
Transmission Type |
Constant Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
9 Forward + 3 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6 x 12 inch (15.24 x 30.48 cm) |
|
Rear Tyres |
9.5 x 20 inch (24.13 x 50.8 cm) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
1000 kg |
|
PTO Speed |
540 RPM/540 E |
|
Fuel Tank Capacity |
24 litres |
|
Front Axle Type |
4 Wheel Drive Axle |
|
Rear Axle Type |
Inboard Reduction |
|
Overall Width |
1080 mm |
|
Overall Length |
2840 mm |
|
Overall Height |
1365 mm |
|
Ground Clearance |
305 mm |
|
Wheel Base |
1640 mm |
|
Total Weight |
1040 kg |
* All the images are screenshots!* Data has been taken from official website (Publicly Available)!
