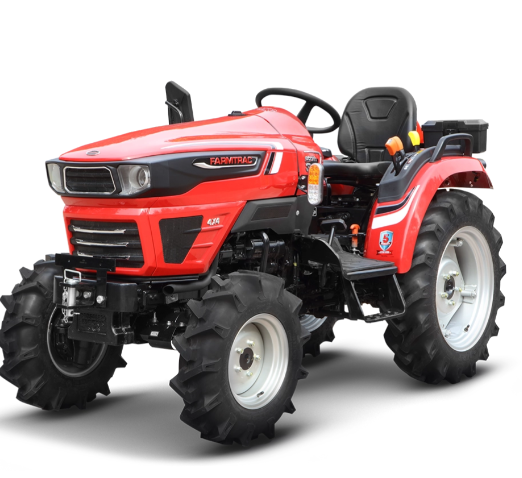

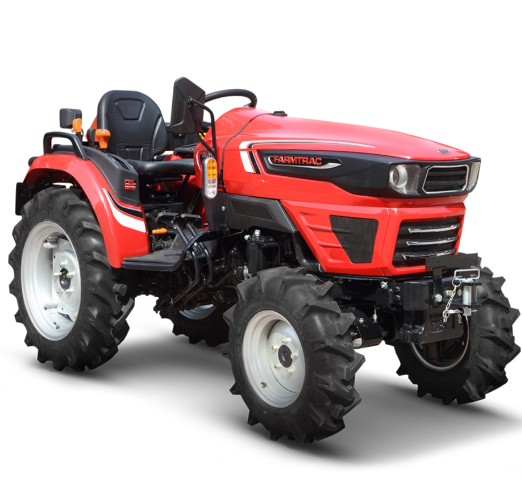

FARMTRAC 30 ATOM 4WD – 4WD Agricultural Tractor by FARMTRAC
Specifications
|
Specification |
Details |
|
Tractor Model |
FARMTRAC 30 ATOM |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Clutch Type |
Single |
|
Transmission Type |
Constant Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
9 Forward + 3 Reverse |
|
Power Range |
22.37 kW (30 HP) |
|
Maximum Torque |
80.5 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6 x 12 inch |
|
Rear Tyres |
8.3 x 20 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1000 kg |
|
PTO RPM |
Standard 540/540 E |
|
Fuel Tank Capacity |
24 L |
|
Front Axle Type |
4 Wheel Drive Axle |
|
Rear Axle Type |
Inboard Reduction |
|
Power Steering |
Power steering |
|
Overall Length |
2730 mm |
|
Overall Width |
1090 mm |
|
Overall Height |
1280 mm |
|
Ground Clearance |
310 mm |
|
Wheel Base |
1550 mm |
|
Weight |
990 kg |
