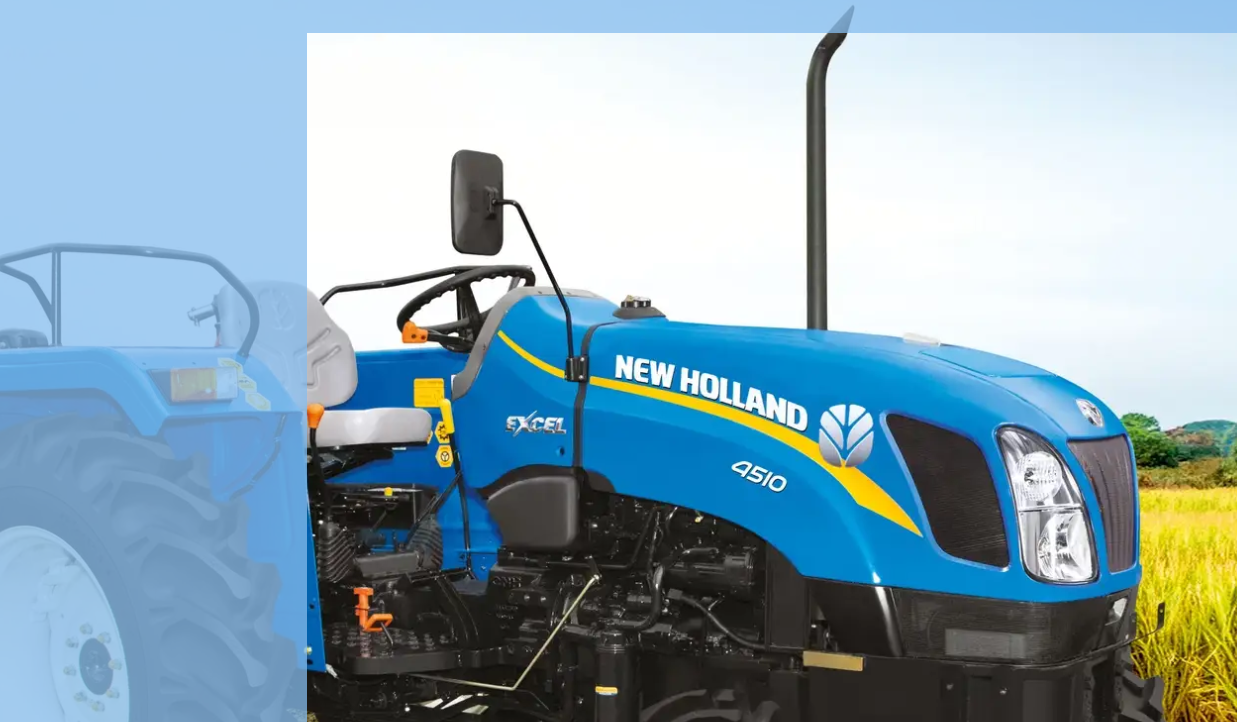

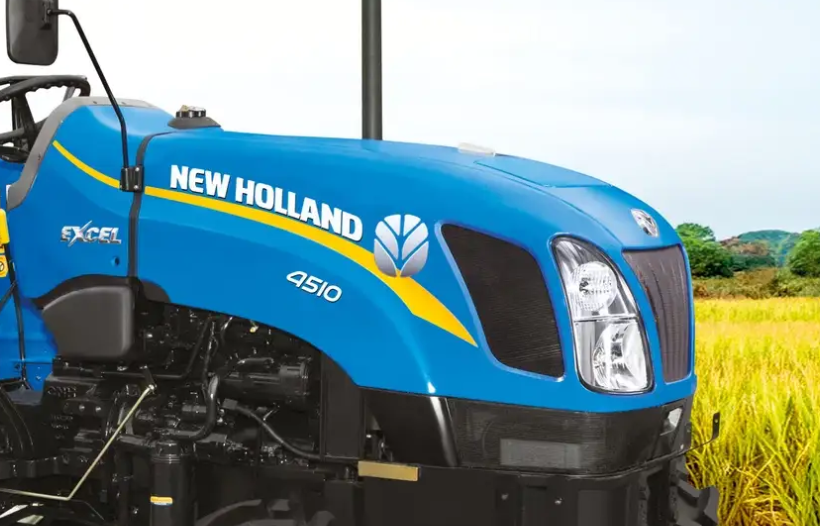

Excel 4510 4WD – 4WD Utility Tractor by New Holland
Specifications
|
Specification |
Details |
|
Tractor Model |
Excel 4510 4WD |
|
Vehicle Category |
4WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Utility Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Model |
T-IIIA, S 325.5 |
|
Engine Type |
Naturally Aspirated |
|
Engine Rated RPM |
2200 |
|
Clutch Type |
Double/Single with IPTO Lever (Optional) |
|
Softek Clutch |
Yes |
|
Transmission Type |
Constant Mesh AFD Side Shift |
|
Drive Type |
4WD |
|
Number of Gears |
8F + 2R |
|
Optional Transmission |
Synchro Shuttle 8F + 8R |
|
Power Range |
45 HP |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Multi Disc Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
8.0 x 18 in (203.2 mm x 457.2 mm) - STS Axle |
|
Rear Tyres |
13.6 x 28 in (345.44 mm x 711.2 mm) |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1800 kg |
|
Hydraulic Control System |
DRC Valve with Lift-O-Matic |
|
PTO Power |
41 HP |
|
PTO Type |
Eptraa PTO - 540S, Reverse PTO, GSPTO |
|
Optional PTO |
Economy PTO (540E) |
|
PTO Clutch Lever |
Independent |
|
Fuel Tank Capacity |
60 L |
|
Battery |
75 Ah |
|
Alternator |
35 Amp |
|
Air Cleaner Type |
Dry Air Cleaner with Clogging Sensor |
|
Front Axle Type |
Heavy Duty |
|
Rear Axle Type |
Straight Axle Planetary Drive |
|
Power Steering |
Power Steering |
|
Softek Clutch |
Yes |
|
Neutral Safety Switch |
Yes |
|
Clutch Safety Lock |
Yes |
|
Rear View Mirror |
Antiglare |
|
Tipping Trailer Pipe |
Yes |
|
Headlamps |
Cat Eye |
|
Maximum Road Speed |
33 km/h |
|
Optional Features |
Synchro Shuttle 8F+8R, Remote Valve, Double Clutch with IPTO Lever, Paddy Special - Double Metal Face Sealing |
|
Overall Length |
3490 mm |
|
Width |
1780 mm |
|
Height |
2325 mm |
|
Wheelbase |
2000 mm |
|
Ground Clearance |
360 mm |
|
Weight |
2150 kg |
