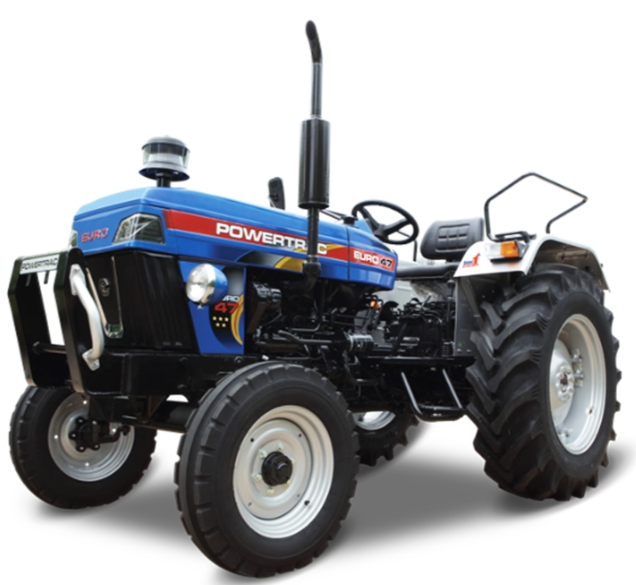

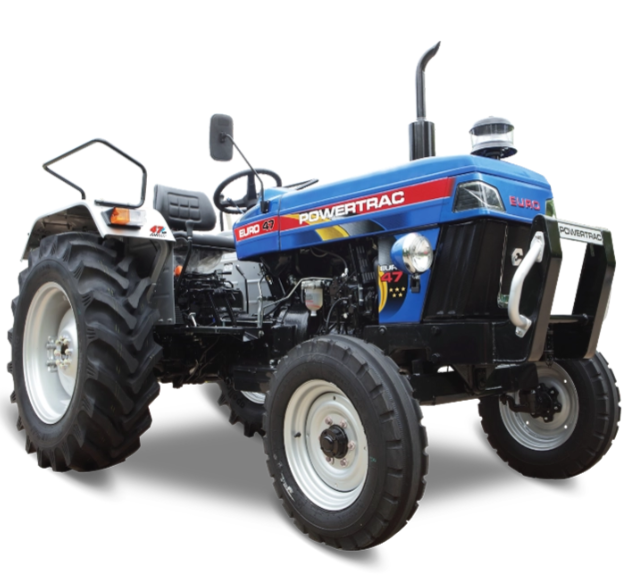

EURO 47 STAR 2WD – 2WD Farm Tractor by FARMTRAC
Specifications
|
Specification |
Details |
|
Tractor Model |
EURO 47 STAR |
|
Vehicle Category |
2WD Tractor |
|
Fuel Type |
Diesel |
|
Application |
2WD Farm Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Clutch Type |
Single | Dual Clutch |
|
Transmission Type |
Constant Mesh/Side Shift |
|
Drive Type |
2WD |
|
Number of Gears |
8F + 2R |
|
Power Range |
35.0 kW (47 HP) |
|
Maximum Torque |
198.5 Nm |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Power |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
6 x 16 inch |
|
Rear Tyres |
14.9 x 28 inch |
Components & Features
|
Specification |
Details |
|
Hydraulics Lifting Capacity |
1600 kg / 2000 kg |
|
PTO RPM |
Standard 540/540E |
|
Fuel Tank Capacity |
50 L |
|
Front Axle Type |
2 WD | Fixed | Adjustable potato axle |
|
Rear Axle Type |
Inboard Reduction |
|
Power Steering |
Power steering |
|
Overall Length |
3525 mm |
|
Overall Width |
1840 mm |
|
Overall Height |
2190 mm |
|
Ground Clearance |
430 mm |
|
Wheel Base |
2055 mm |
|
Weight |
2040 kg |
