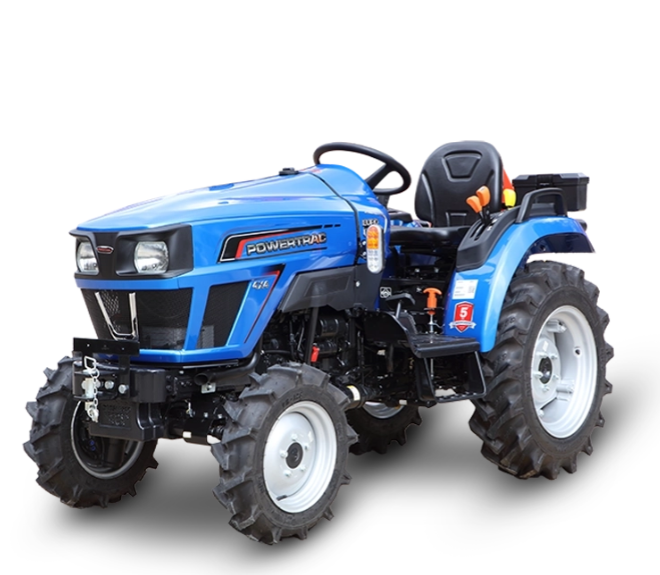

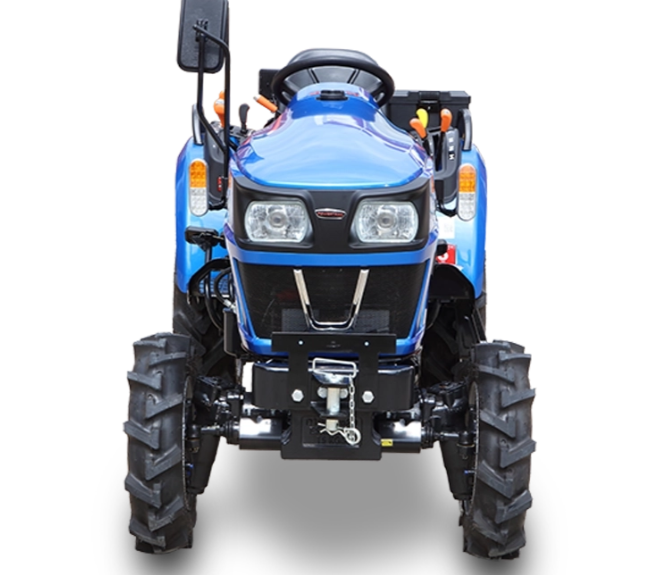

EURO 24G – 4WD Agricultural Mini Tractor by Powertrac
Specifications
|
Specification |
Details |
|
Tractor Model |
EURO 24G |
|
Vehicle Category |
4WD Mini Tractor |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Mini Tractor |
Frame & Drivetrain
|
Specification |
Details |
|
Number of Engine Cylinders |
3 |
|
Engine Power |
17.9 kW (24 HP Cat.) |
|
Maximum Torque |
74 Nm |
|
Clutch |
Single Clutch |
|
Transmission Type |
Constant Mesh |
|
Drive Type |
4WD |
|
Number of Gears |
9 Forward + 3 Reverse |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
12.7 cm x 30.48 cm (5 inch x 12 inch); 15.2 cm x 30.48 cm (6 inch x 12 inch) |
|
Rear Tyres |
20.32 cm x 45.72 cm (8 inch x 18 inch); 21.08 cm x 50.8 cm (8.3 inch x 20 inch) |
Components & Features
|
Specification |
Details |
|
Lift Capacity |
750 kg |
|
PTO Speed |
540/540E RPM |
|
Fuel Tank Capacity |
24 litres |
|
Front Axle Type |
4WD |
|
Rear Axle Type |
Inboard Reduction |
|
Overall Width |
1065 mm |
|
Overall Length |
2740 mm |
|
Overall Height |
1300 mm |
|
Ground Clearance |
310 mm |
|
Wheel Base |
1560 mm |
|
Total Weight |
986 kg |
