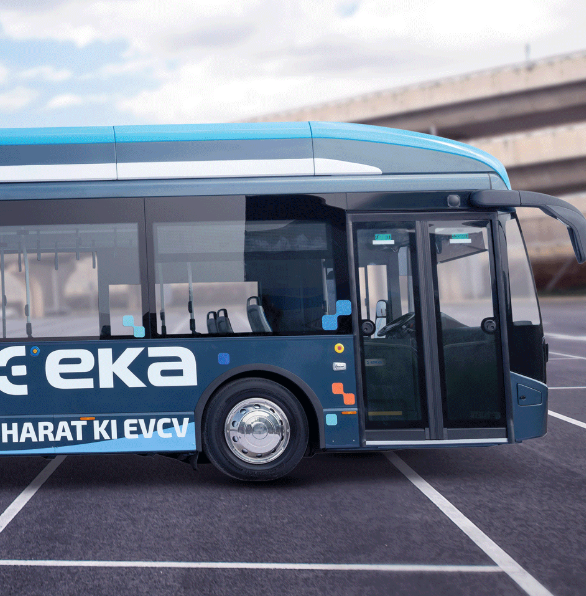

EKA LF Electric Low Floor City Bus
Specifications
|
Specification |
Details |
|
Model |
EKA LF |
|
Overall Length |
12,000 mm |
|
Overall Width |
2,550 mm |
|
Overall Height |
3,290 mm |
|
Permitted GVW |
18,745 kg |
|
Passenger Capacity |
LHD: D + 27 + WC + 3 folding seats (3 doors); RHD: D + 35 + WC + 3 folding seats (2 doors, 850 mm front, 1350 mm middle) or D + 33 + WC + 3 folding seats (2 doors, 1350 mm front/middle) |
|
Certified Range |
280 km |
|
Gradeability |
12% |
|
Max Speed |
75 kmph |
|
Fuel Type |
Electric |
|
Application |
Low Floor City Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
5,850 mm |
|
Chassis Construction Type |
Modular |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Front and rear electronically controlled air suspension (ECAS) |
|
Brakes |
Front and rear disc brakes with Emergency Braking System (EBS) |
|
Steering |
Electrohydraulic power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Tubeless radial, 275/70 R22.5 |
Components & Features
|
Feature |
Details |
|
Electric Motor |
160 kW, 2,500 Nm |
|
Battery |
Lithium Ferrous Phosphate (LFP), 350 kWh, 580–660 V |
|
Charging System |
Pantograph for overhead charging, Plug-in CCS2 Fast Charger (Dual Gun), 180 kW or 240 kW, charging time 2.5 hrs (180 kW) or 2 hrs (240 kW) |
|
Climate Control |
Heating, ventilation, and AC, service unit + free flow, 36 kW capacity |
|

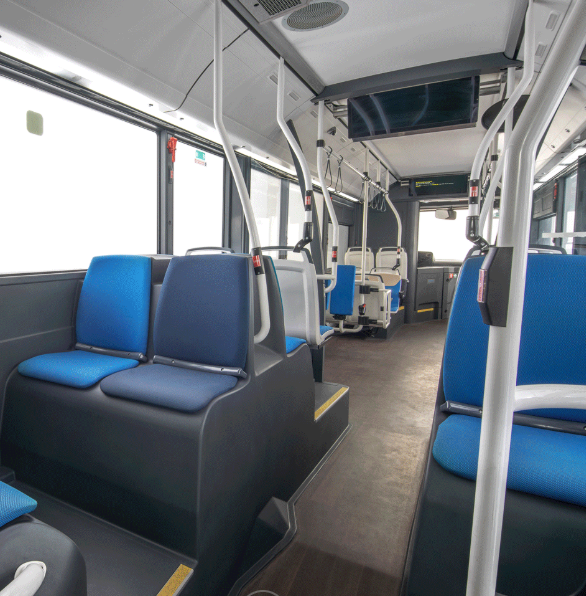

Interior |
Multiple configurations, climate-controlled AC, full standing height, completely flat floor, low NVH levels, accommodation for wheelchair |
