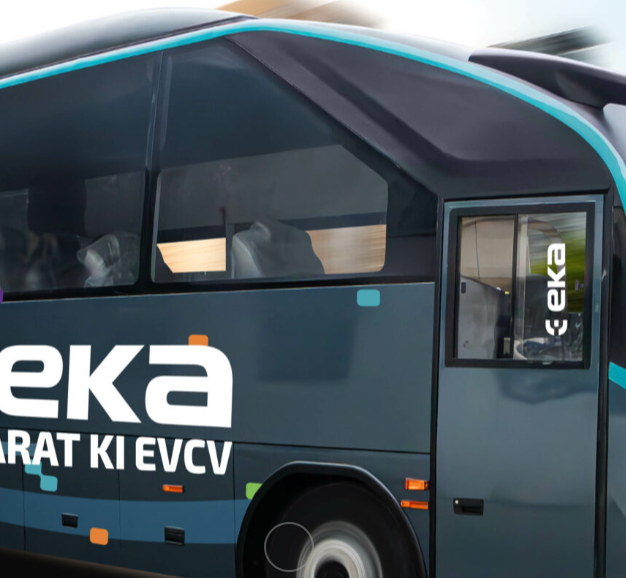

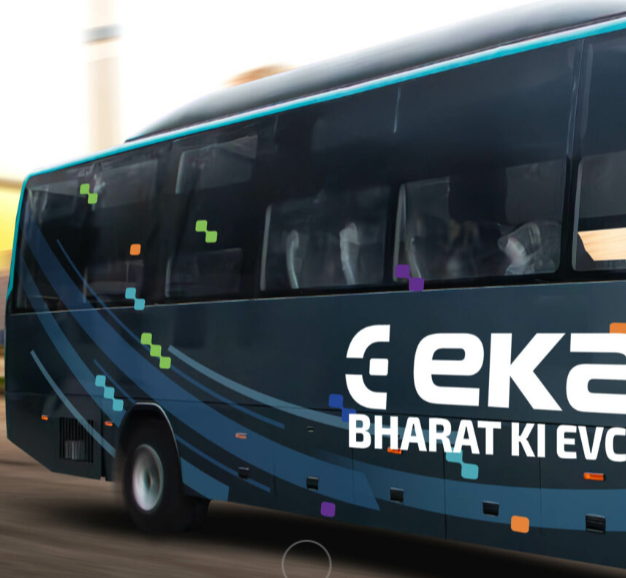

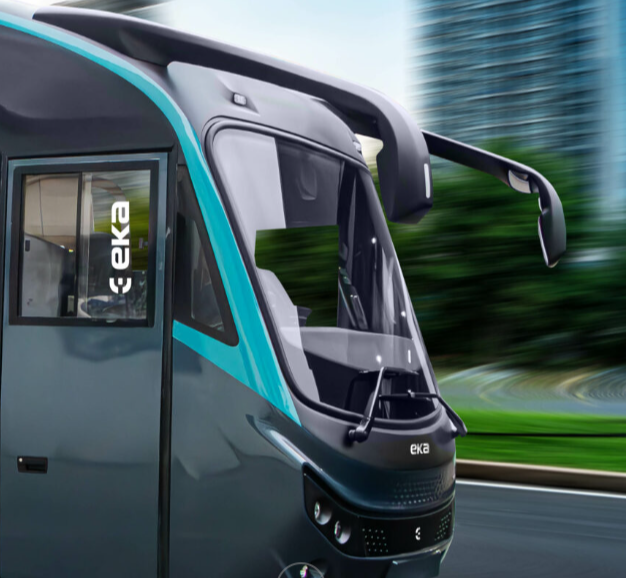

EKA Coach – Electric Intercity Coach by EKA Mobility
Specifications
|
Specification |
Details |
|
Truck Model |
EKA Coach |
|
Chassis Type |
Monocoque |
|
Max Seating Capacity |
Seater: D + 45 to 53 Reclining Seats; Sleeper: D + 36 Berths; Hybrid: D + 24 Reclining Seats + 24 Berths |
|
L x W x H |
13480 x 2600 x 4085 mm |
|
Wheelbase |
7200 mm |
|
GVW |
19500 kg |
|
Fuel Type |
Electric |
|
Application |
Electric Intercity Coach |
|
Max Speed |
100 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Max Power |
339 kW |
|
Max Torque |
3300 Nm |
|
Battery Type |
Lithium Ferrous Phosphate (LFP) |
|
Battery Capacity |
451 kWhr |
|
Operating Voltage |
660 V |
|
Charging |
Plug-in CCS2 Fast Charger, Dual Gun |
|
Charger Options |
180 kW, 240 kW, 360 kW |
|
Charging Time |
3.5 hrs (180 kW), 2.5 hrs (240 kW), 2 hrs (360 kW) |
|
Range |
300 km |
|
Gradeability |
18% |
Suspension & Brakes
|
Specification |
Details |
|
Steering |
Electro-Hydraulic Power Steering System with Tilt & Telescopic Mechanism |
|
Suspension |
Front & Rear Electronically Controlled Air Suspension (ECAS) |
|
Brakes |
Front and Rear Disc Brakes with Emergency Braking System (EBS) |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Type |
Tubeless Radial |
|
Tyre Size |
295/80 R22.5 16PR |
Components & Features
|
Specification |
Details |
|
Climate Control |
Heating Ventilation and AC |
|
Climate Control Type |
Service Unit + Free Flow |
|
Climate Control Capacity |
45 kW |
|
Product Highlights |
Rugged Exteriors, Plush Interiors, Cutting-Edge Safety, Smart Efficiency, Heavy-Duty Motor, High Torque & Power, Locomotive DNA for High Currents, Advanced Regenerative Algorithm, Modular Battery Pack with Twin In-line Cooling, Pulse Technology Enabled Battery Charging, Efficient Battery Design with High Energy Density, Smart Predictive Algorithm for Prevention of Thermal Runaways |
