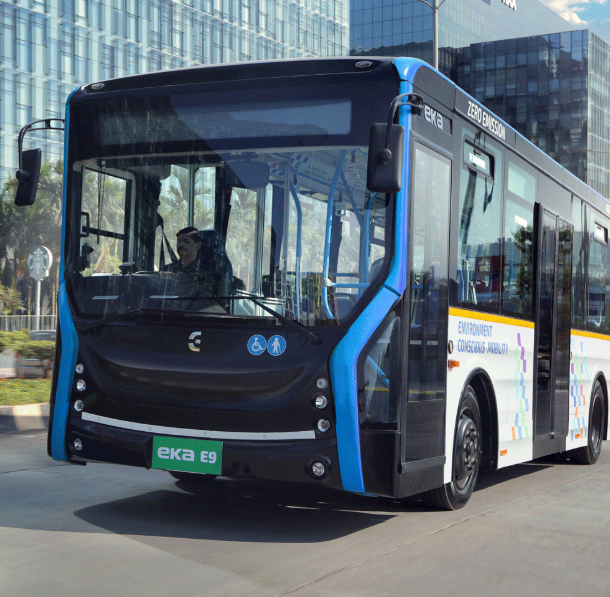

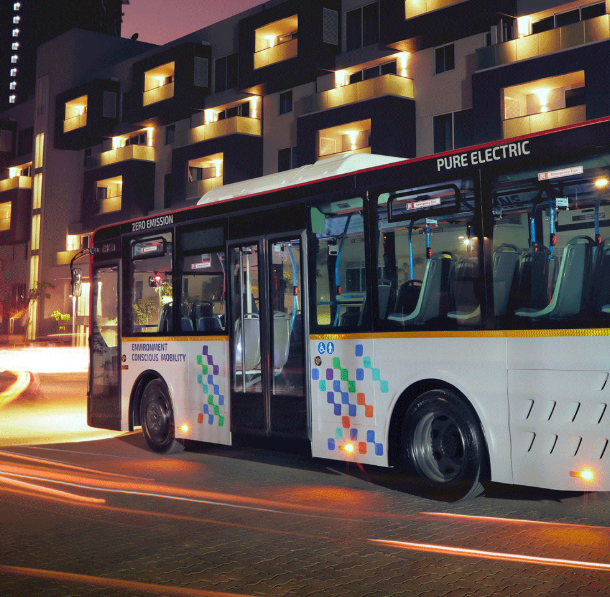

EKA 9M Electric City Bus
Specifications
|
Specification |
Details |
|
Model |
EKA 9M |
|
Overall Length |
9,200 mm |
|
Overall Width |
2,500 mm |
|
Overall Height |
3,200 mm |
|
Permitted GVW |
12,500 kg |
|
Passenger Capacity |
D + 35 HB (2x2) or D + 33 PB (2x2), handicap-friendly option available |
|
Certified Range |
180 km |
|
Gradeability |
17% |
|
Max Speed |
80 kmph |
|
Fuel Type |
Electric |
|
Application |
City Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
4,800 mm |
|
Chassis Construction Type |
Monocoque |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Air suspension, optional Electronic Controlled Air Suspension (ECAS) |
|
Brakes |
Front and rear disc brakes |
|
Steering |
Electro-hydraulic power steering with tilt and telescopic mechanism |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Tubeless radial, 255/70 R22.5 |
Components & Features
|
Feature |
Details |
|
Electric Motor |
213 kW, 2,352 Nm |
|
Battery |
Lithium Ferrous Phosphate (LFP), 200 kWh, 660 V |
|
Charging System |
Fast Charging CCS2 (Single Gun), 80 kW or 240 kW, charging time 2.5 hrs (80 kW) or 1.5 hrs (240 kW) |
|
Climate Control |
AC with optional demister, service unit + free flow, 28 kW capacity, bacterial filtration system |
|
Interior |
Widebody 2x2 configuration, climate-controlled AC, full standing height, low NVH levels, accommodation for wheelchair |
