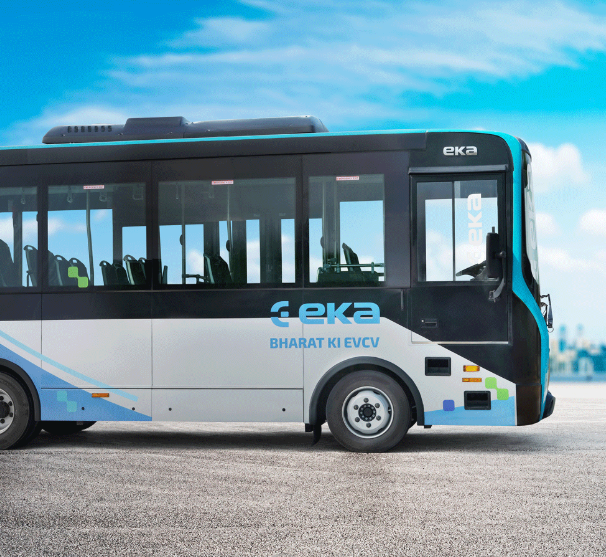

EKA 7M Electric City Bus
Specifications
|
Specification |
Details |
|
Model |
EKA 7M |
|
Overall Length |
6,950 mm |
|
Overall Width |
2,190 mm |
|
Overall Height |
2,800 mm |
|
Permitted GVW |
8,900 kg |
|
Passenger Capacity |
D + 19 (2x1) or D + 22 (2x2) |
|
Certified Range |
160 km |
|
Gradeability |
17% |
|
Max Speed |
75 kmph |
|
Fuel Type |
Electric |
|
Application |
City Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
4,300 mm |
|
Chassis Construction Type |
Monocoque |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Air suspension |
|
Brakes |
Front and rear disc brakes |
|

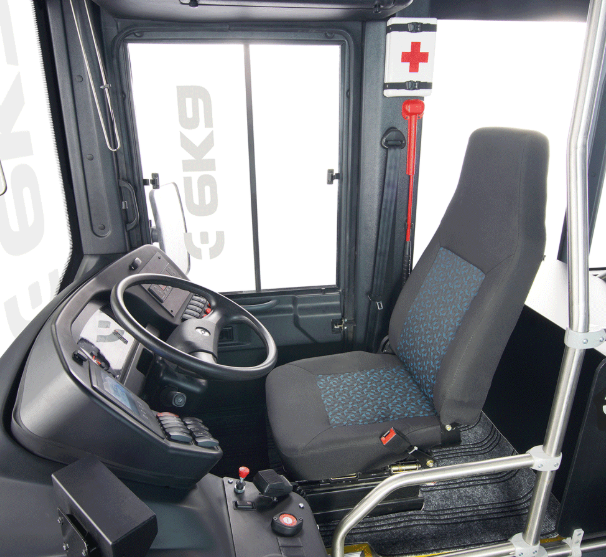

Steering |
Electro-hydraulic power steering with tilt and telescopic mechanism |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Tubeless radial, 215/75 R17.5 |
Components & Features
|
Feature |
Details |
|
Electric Motor |
124 kW, 1,500 Nm |
|
Battery |
Lithium Ferrous Phosphate (LFP), 100 kWh, 660 V |
|
Charging System |
Plug-in CCS2 Fast Charger |
|
Climate Control |
AC with optional demister, service unit + free flow, 20 kW capacity |
|

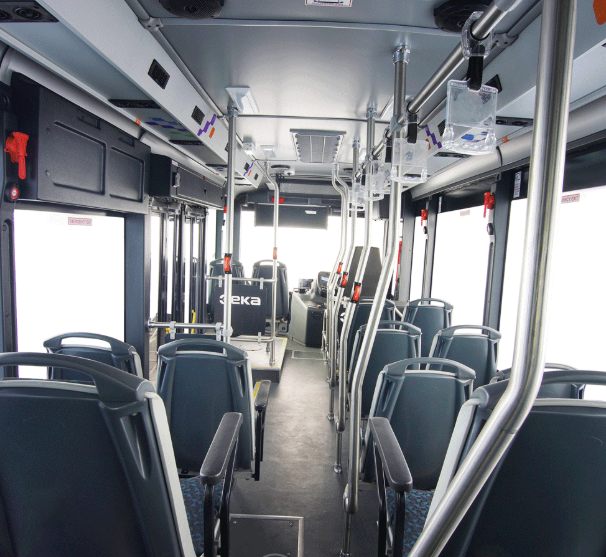

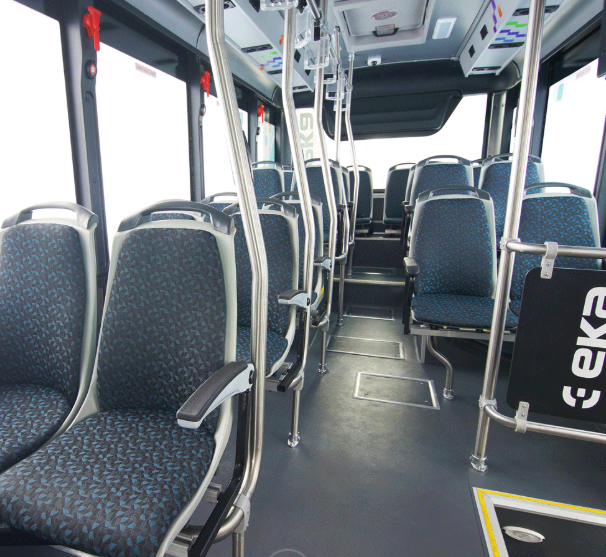

Interior |
2x1 and 2x2 configurations, powerful air conditioner, low NVH levels |
