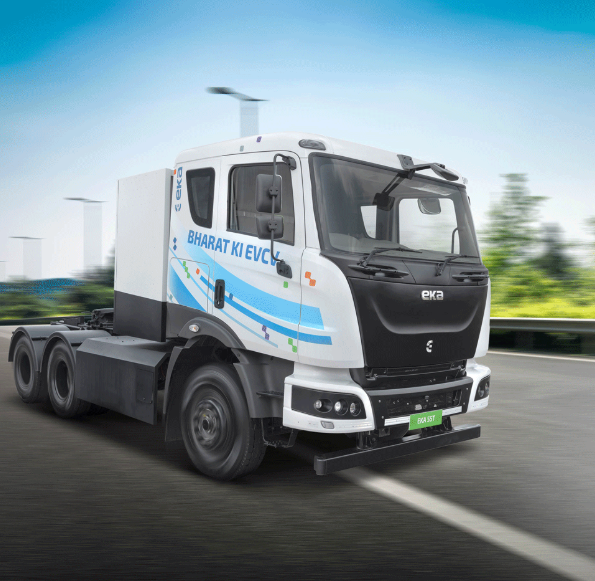

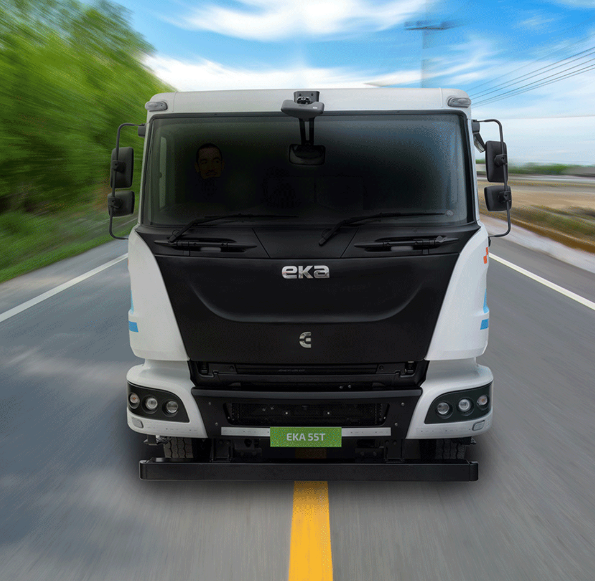

EKA 55T – Electric Heavy-Duty Truck by EKA Mobility
Specifications
|
Specification |
Details |
|
Truck Model |
EKA 55T |
|
GCW |
55000 kg |
|
Payload |
43000 kg |
|
Configurations |
6x4, 4x2 |
|
Vehicle L x W x H |
7115 x 2490 x 3028 mm |
|
Wheelbase |
4100 mm |
|
Ground Clearance |
275 mm |
|
Container |
Standard Semi Trailer |
|
Cargo Size |
40' Container / Flatbed Trailer |
|
Chassis Type |
Ladder |
|
Seating Capacity |
D + 1 (Sleeper/Day Cab Options Available) |
|
Fuel Type |
Electric |
|
Application |
Electric Heavy-Duty Truck |
|
Max Speed |
80 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Traction Motor Type |
PMSM |
|
Rated Power |
190 kW |
|
Peak Power |
330 kW |
|
Peak Torque |
3500 Nm |
|
Continuous Torque |
1800 Nm |
|
Battery Type |
Lithium Ferro Phosphate (LFP) |
|
Battery Capacity |
322 kWh |
|
Operating Voltage |
650 V |
|
Charging Socket |
CCS 2 |
|
Charger |
240 kW, Dual Gun |
|
Charging Time |
3 hours |
|
Range |
Up to 200 km |
|
Gradeability |
27% |
|
Transmission |
AMT |
|
Gearbox |
6 Speed |
Suspension & Brakes
|
Specification |
Details |
|
Steering |
Power Steering |
|
Suspension |
Front: Parabolic Leaf Spring; Rear: Bell Crank Leaf Spring (Inverted Leaf Bogie Suspension Option) |
|
Brakes |
Front: Drum Brakes; Rear: Drum Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Size |
295/90 R20 16PR |
Components & Features
|
Specification |
Details |
|
Climate Control |
Optional (5 kW) |
|
Product Highlights |
Rugged Build: PMSM Traction Motor, Sturdy Ladder Chassis, Parabolic Leaf Spring Front Suspension, Bell Crank Leaf Spring Rear Suspension, Flush-Mounted Battery Pack; Comfortable Cabin; Smart Safety; Advanced Efficiency |
