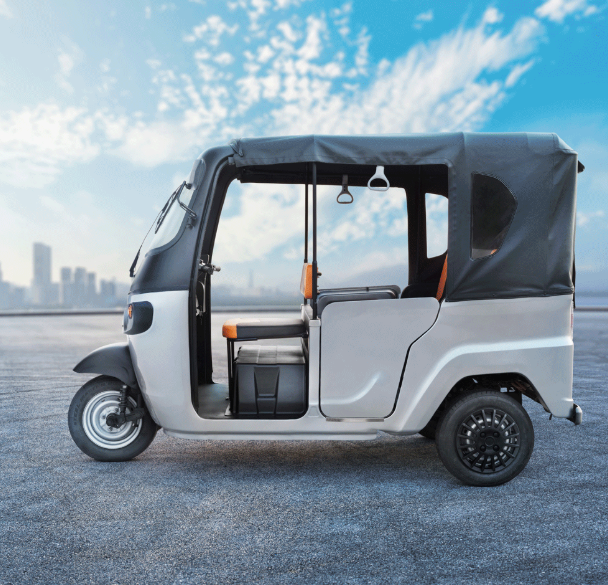

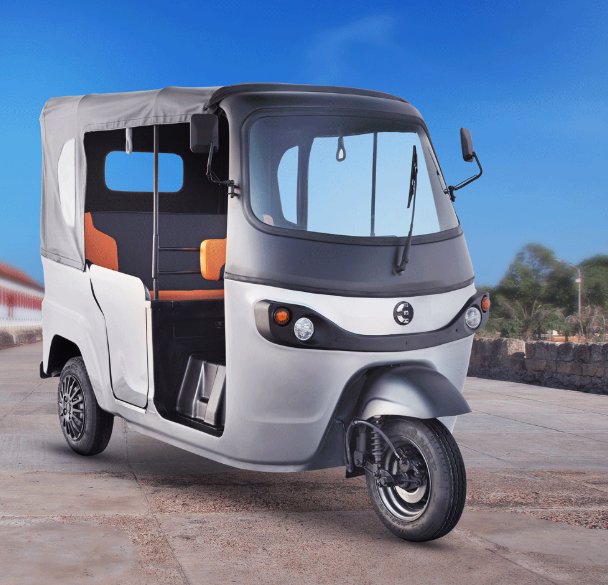

EKA 3S Electric Three-Wheeler Auto Rickshaw
Specifications
|
Specification |
Details |
|
Model |
EKA 3S |
|
Vehicle Category |
L5M |
|
Seating Capacity |
D + 3 |
|
Certified Range |
160 km |
|
Gradeability |
21% (Continuous) |
|
Max Speed |
60 kmph |
|
Fuel Type |
Electric |
|
Application |
Three-Wheeler Auto Rickshaw |
|
Battery Warranty |
5 years or 1,20,000 km (whichever is earlier) |
Frame & Drivetrain
|
Specification |
Details |
|
Ground Clearance |
187 mm |
|
Transmission |
Automatic |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
Helical spring + damper + hydraulic damper |
|
Rear Suspension |
Independent trailing arm with helical spring & hydraulic damper |
|
Brakes |
Front: disc brakes; Rear: drum brakes |
|

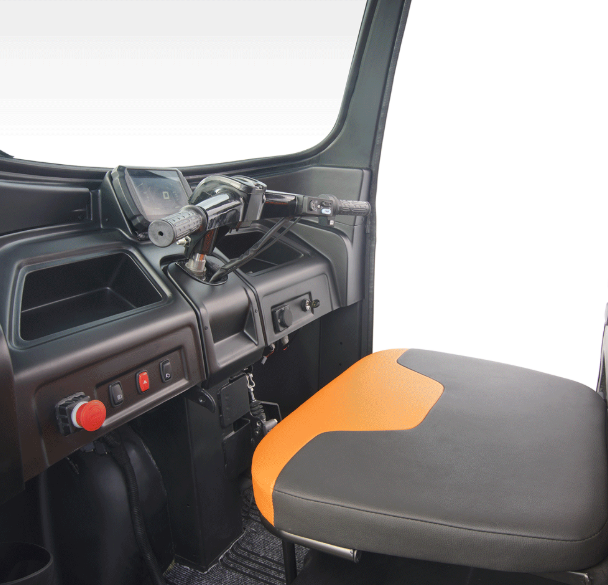

Steering |
Handlebar |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
Tubeless, 120/80 R12 |
Components & Features
|
Feature |
Details |
|
Electric Motor |
10 kW, 55 Nm |
|
Battery |
Lithium Ferrous Phosphate (LFP), 10.75 kWh, 51.2 V |
|
Charging System |
Single Phase AC Charging/Home Charging (3-pin 16 Amp, 3.5 hrs), DC Fast Charging (Type 6 DC, 2 hrs) |
|
Performance Features |
Easy home charging, enhanced regenerative braking, hill hold assist |
