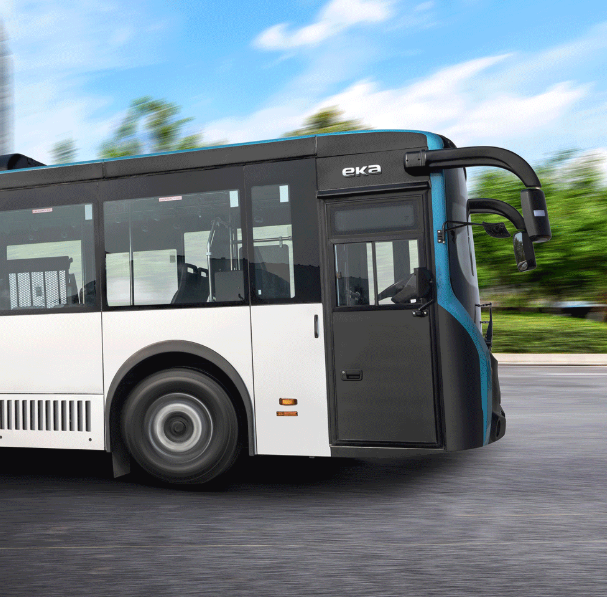

EKA 12M – Electric City Bus by EKA Mobility
Specifications
|
Specification |
Details |
|
Bus Model |
EKA 12M |
|
Chassis Construction Type |
Ladder |
|
Max Seating Capacity |
D + 43 (2x2), D + 54 (3x2), Handicap-friendly version available |
|
L x W x H |
12000 x 2600 x 3600 mm |
|
Wheelbase |
6200 mm |
|
GVW |
19500 kg |
|
Fuel Type |
Electric |
|
Application |
Electric City Bus |
|
Max Speed |
80 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Max Power |
240 kW |
|
Max Torque |
3000 Nm |
|
Battery Type |
Lithium Ferrous Phosphate (LFP) |
|
Battery Capacity |
300 kWhr |
|
Operating Voltage |
660 V |
|
Charging |
Plug-in CCS2 Fast Charger, Dual Gun |
|
Charger Options |
180 kW, 240 kW (Single Gun) |
|
Charging Time |
3.5 hrs (180 kW), 2.5 hrs (240 kW) |
|
Range |
250 km |
|
Gradeability |
17% |
Suspension & Brakes
|
Specification |
Details |
|
Steering |
Electro-Hydraulic Power Steering System with Tilt & Telescopic Mechanism |
|
Suspension |
Air Suspension (Electronic Controlled Air Suspension (ECAS) optional) |
|
Brakes |
Front: Disc Brakes; Rear: Drum Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Type |
Tubeless Radial |
|
Tyre Size |
295/80 R22.5 |
Components & Features
|
Specification |
Details |
|
Climate Control |
AC (Demister optional) |
|
Climate Control Type |
Service Unit + Free Flow |
|
Climate Control Capacity |
32 kW |
|
Product Highlights |

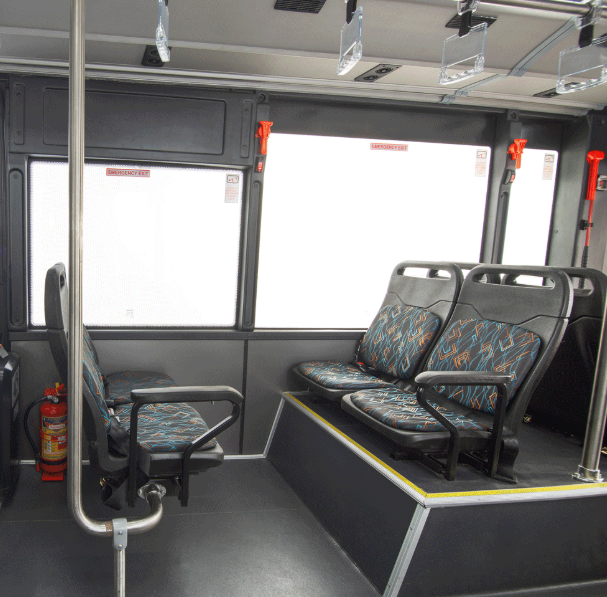

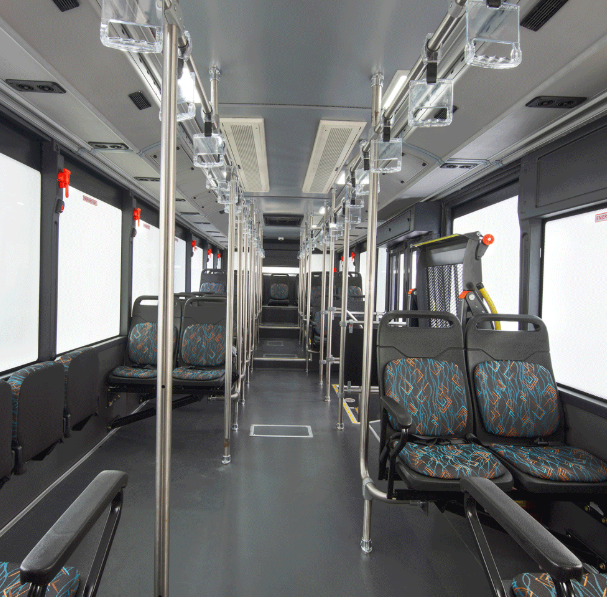

Comfort: 2x2 & 3x2 Configurations, Climate-controlled AC, Bacterial Filtration System, Air Suspension with ECAS, Full Standing Height, Low NVH Levels, Accommodation for Wheelchair; Economy; Safety; Performance |
