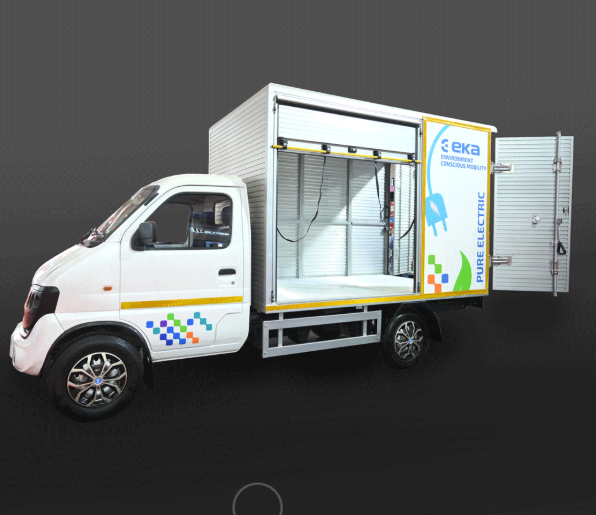

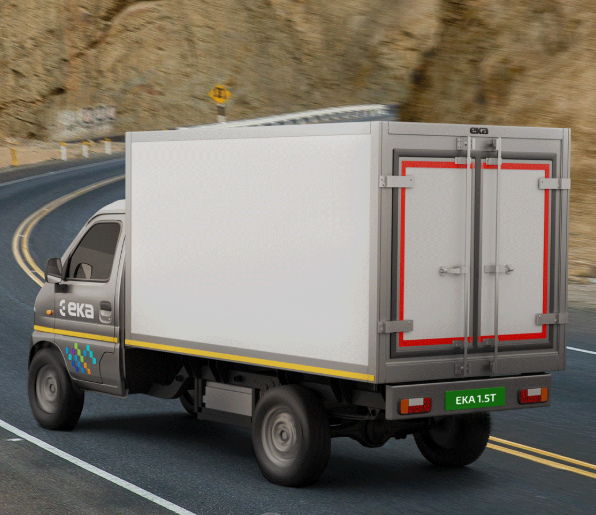

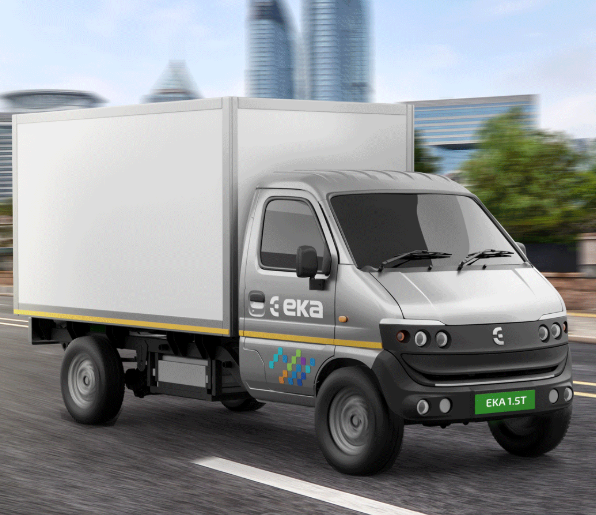

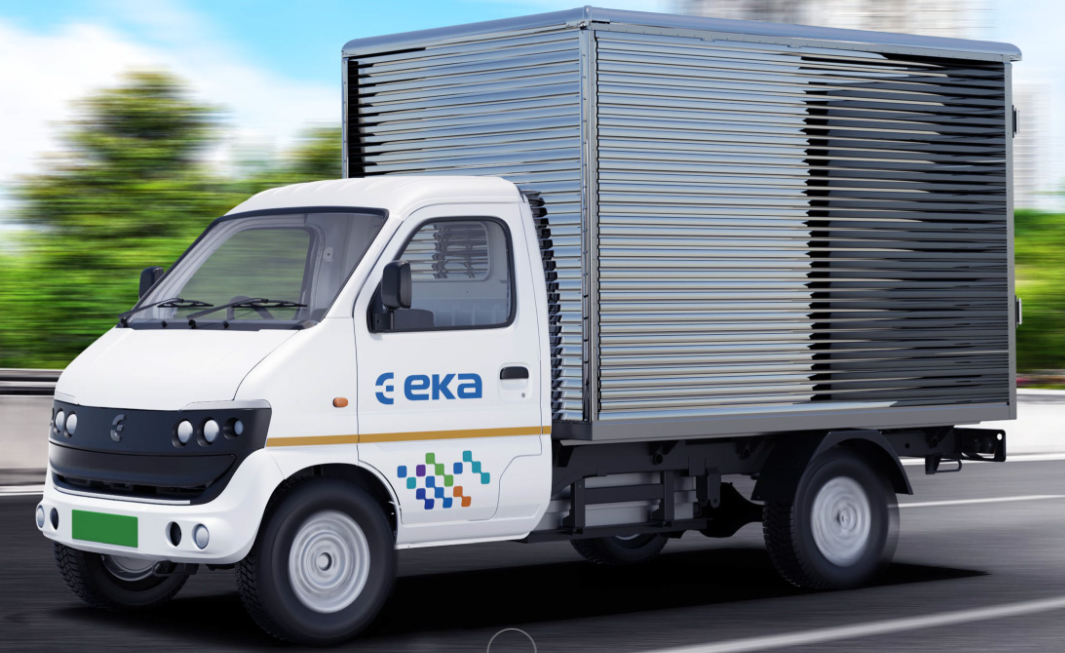

EKA 1.5T Electric Urban Logistics Truck Vehicle
Specifications
|
Specification |
Details |
|
Model |
EKA 1.5T |
|
Vehicle Category |
N1 |
|
Overall Length |
4,610 mm |
|
Overall Width |
1,600 mm |
|
Overall Height |
1,850 mm |
|
Permitted GVW |
2,510 kg |
|
Payload |
1,500 kg |
|
Seating Capacity |
D + 1 |
|
Certified Range |
180 km |
|
Gradeability |
18% |
|
Max Speed |
70 kmph |
|
Fuel Type |
Electric |
|
Application |
Urban Logistics Vehicle |
|
Vehicle Warranty |
3 years or 1,65,000 km (whichever is earlier) |
|
Battery Warranty |
6 years or 1,65,000 km (whichever is earlier) |
Frame & Drivetrain
|
Specification |
Details |
|
Wheelbase |
2,900 mm |
|
Chassis |
Ladder frame |
|
Transmission |
Automatic |
Suspension & Brakes
|
Specification |
Details |
|
Front Suspension |
MacPherson independent suspension |
|
Rear Suspension |
Longitudinal leaf spring suspension |
|
Brakes |
Front: disc brakes; Rear: drum brakes |
|
Steering |
Rack and pinion type, electrically assisted |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
175 R14 LT |
Components & Features
|
Feature |
Details |
|
Electric Motor |
60 kW, 220 Nm |
|
Battery |
Lithium Ferrous Phosphate (LFP), 32 kWh, 307 V |
|
Charging System |
Single phase AC charging, 240 V ± 10%, 50 Hz ± 5%, wall-mounted, 32 A max input current, 4 hrs charging time |
|
Container |
Sturdy MS/AL body, external dimensions: 2,750 x 1,750 x 1,956 mm, internal dimensions: 2,687 x 1,692 x 1,855 mm, volume: 8.44 m³ (3,000 ft³), branding space: 13.01 ft² |
|
Hill Hold Assist |
Yes |
