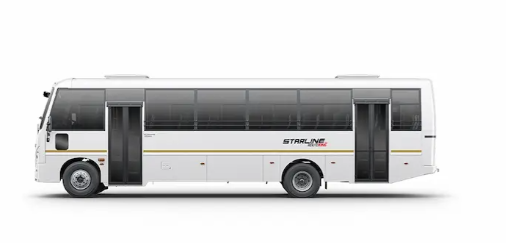

Eicher Starline Routeking 2075 H Diesel – Staff Bus Chassis by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Routeking 2075 H |
|
Seating Capacity |
31+1+D (SD) / 27+1+D (DD) |
|
Wheelbase, mm |
4320 |
|
Overall Length, mm |
8112 |
|
Overall Width, mm |
2164 |
|
Overall Height, mm |
2865 |
|
Ground Clearance, mm |
187 |
|
Front Overhang, mm |
1200 |
|
Rear Overhang, mm |
2592 |
|
Turning Circle Diameter, m |
16 |
|

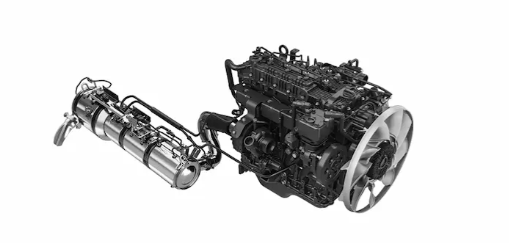

Engine Make |
E474 |
|
Displacement, cc |
2960 |
|
Power |
90 kW @ 3200 Rpm |
|
Torque |
350 Nm @ 1200 - 2500 Rpm |
|
Clutch, mm |
310 |
|
Transmission Make |
ET35S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Rev) |
|
GVW, t |
8.2 |
|
Chassis Type |
Domex® 650 |
|
Chassis dimension, mm |
200x65x5 |
|
Fuel Tank Capacity, L |
100 |
|
Brakes |
Dual circuit 'S' cam air brakes |
|
Tyres |
7.50 x 16 -16 PR |
|
Suspension Front |
Semi elliptical |
|
Suspension Rear |
Semi elliptical |
|
Steering |
Power steering |
|
Battery |
12V, 130Ah |
|
Alternator |
110A |
|
Flooring |
Aluminium Chequered |
|
Ad Blue Tank Capacity, L |
19 |
|
Fuel Type |
Diesel |
|
Application |
Staff Buses |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
