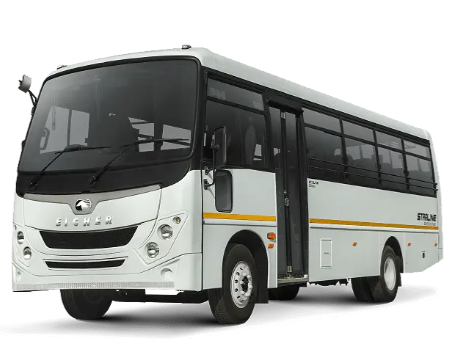

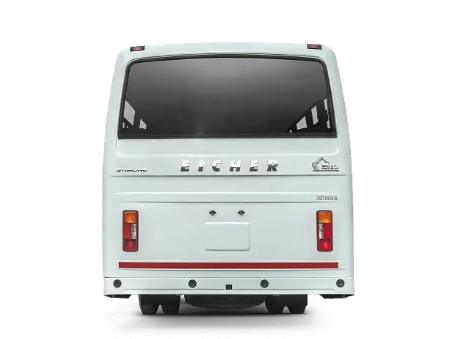

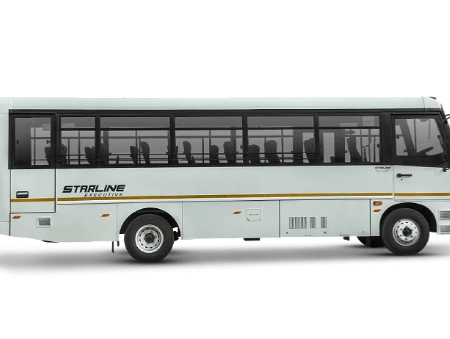

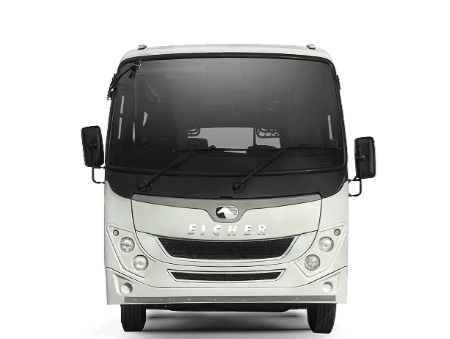

Eicher Starline Next 2090 L – Diesel Staff Bus Chassis with AC
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Next 2090 L |
|
Seating Capacity |
39+1+D HHR, 35+1+D DD HHR |
|
Wheelbase, mm |
5240 |
|
Overall Length, mm |
9584 |
|
Overall Width, mm |
2164 |
|
Overall Height, mm |
2960 |
|
Front Overhang, mm |
1200 |
|
Rear Overhang, mm |
3144 |
|
Turning Circle Diameter, m |
19.4 |
|
Engine Make |
E474 |
|
Displacement, cc |
2960 |
|
Power |
105 kW @ 3200 RPM |
|
Torque |
400 Nm @ 1200 – 2500 RPM |
|
Clutch Diameter, mm |
310 |
|
Transmission Make |
ET35S6, ET35S5 |
|
Transmission Type |
Synchromesh (6 Speed + 1 Reverse), Synchromesh (5 Speed + 1 Reverse) |
|
GVW |
9.8 t |
|
Chassis Type |
Domex® 650 |
|
Chassis C Frame Dimensions, mm |
200 x 65 x 5 |
|
Fuel Tank Capacity, L |
160 |
|
DEF Tank Capacity, L |
19 |
|
Brakes |
Dual Circuit 'S' Cam Full Air Brakes |
|
Tyre Size |
8.25 x 16 - 16 PR |
|
Front Suspension |
Semi Elliptic |
|
Rear Suspension |
Semi Elliptic |
|
Steering Type |
Power Steering |
|
Battery |
12V 130Ah |
|
Alternator |
110A |
|
Floor Type |
Button Vinyl |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Efficiency Feature |
MBooster+ |
|
Efficiency Feature |
Cruise Control |
|
Telematics Feature |
Eicher Live Telematics System |
|
Steering Feature |
Adjustable Steering Column |
|
Seating Feature |
Seat Height Adjustment |
|
Safety Feature |
Fire Detection and Suppression System (FDSS) |
|
Safety Feature |
Seat Belts |
|
Safety Feature |
Emergency Exit |
|
Safety Feature |
School Bus Signage and Stop Arm |
|
Safety Feature |
First-Aid Kit |
|
Comfort Feature |
Air Conditioning (AC) Unit |
