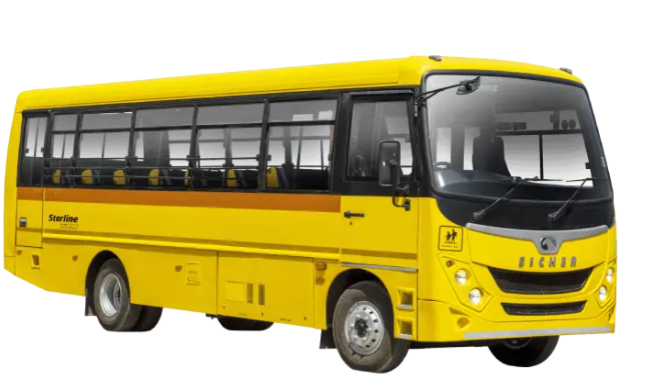

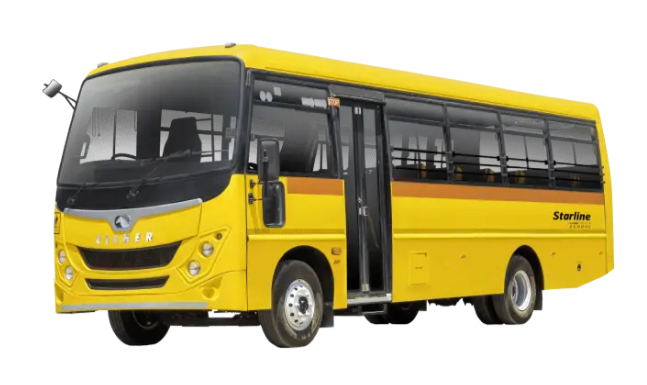

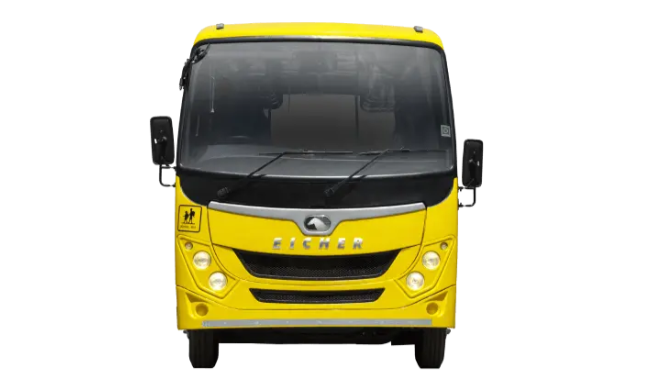

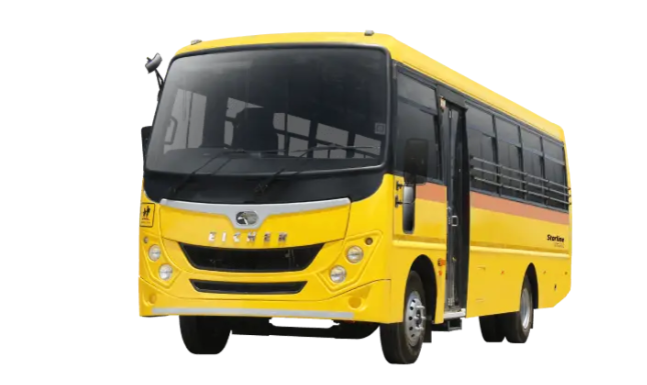

Eicher Starline Next 2090 K AC Diesel – School Buses by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Next 2090 K AC |
|
Seating Capacity |
37+CD+D (2x2); 45+CD+D (3x2) |
|
Wheelbase |
4820 mm |
|
Overall Length |
8910 mm |
|
Overall Width |
2164 mm |
|
Overall Height |
3070 mm |
|
Front Overhang |
1200 mm |
|
Rear Overhang |
2890 mm |
|
Turning Circle Diameter |
17.9 m |
|
Fuel Tank Capacity |
100 litre |
|
DEF Tank Capacity |
27 litre |
|
Fuel Type |
Diesel |
|
Flooring |
Button Vinyl |
|
Application |
School Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Frame |
Domex® 650 |
|
Chassis Dimensions |
200x65x5 mm |
|
Engine Make |
E474 |
|
Displacement |
2960 cc |
|
Power |
105 kW @ 3200 rpm |
|
Torque |
400 Nm @ 1250-2500 rpm |
|
Clutch Diameter |
310 mm |
|
Transmission |
ET35S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Rev) |
|
GVW |
8.6 t |
|
Battery |
12V, 130Ah |
|
Alternator |
2 x 110A |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi elliptical |
|
Suspension Rear |
Semi elliptical |
|
Brakes |
Air Drum Brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
8.25 x 16 - 16 PR |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Safety Feature |
School bus signage and stop arm |
|
Comfort Feature |
Air conditioning (AC) unit |
