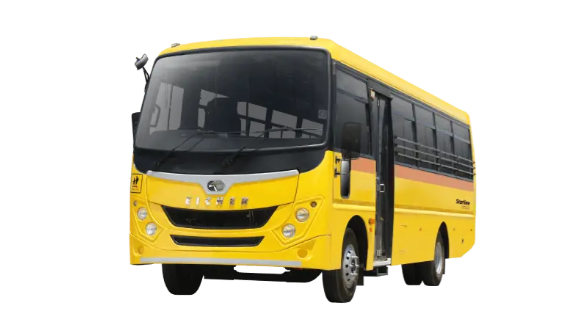

Eicher Starline Next 2070 E Diesel – Eicher Trucks and Buses School Bus Chassis
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Next 2070 E |
|
Seating Capacity (2x2) |
25+CD+D |
|
Seating Capacity (3x2) |
30+CD+D |
|
Wheelbase, mm |
3515 |
|
Overall length, mm |
6855 |
|
Overall width, mm |
2164 |
|
Overall height, mm |
2765 |
|
Front overhang, mm |
1200 |
|
Rear overhang, mm |
2140 |
|
Turning circle diameter, m |
13.1 |
|
Engine |
E474 |
|
Displacement, cc |
2960 |
|
Power |
90 kW @ 3200 Rpm |
|
Torque |
350 Nm @ 1200 – 2500 Rpm |
|
Clutch diameter, mm |
310 |
|
Transmission |
ET35S5 |
|
Transmission type |
Synchromesh (5 Speed + 1 Rev) |
|
GVW, t |
7.5 |
|
Chassis frame |
Domex® 650 |
|
Chassis C frame dimensions, mm |
200x65x5 |
|
Fuel tank capacity, L |
100 |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Tyres |
7.50 x 16 -16 PR |
|
Suspension - front |
Semi elliptic |
|
Suspension - rear |
Semi elliptic |
|
Steering |
Power steering |
|
Battery |
12V 130Ah |
|
Alternator |
110A |
|
Floor type |
Button type Vinyl |
|
DEF tank capacity, L |
19 |
|
Fuel Type |
Diesel |
|
Application |
School Buses |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
School bus signage and stop arm |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
