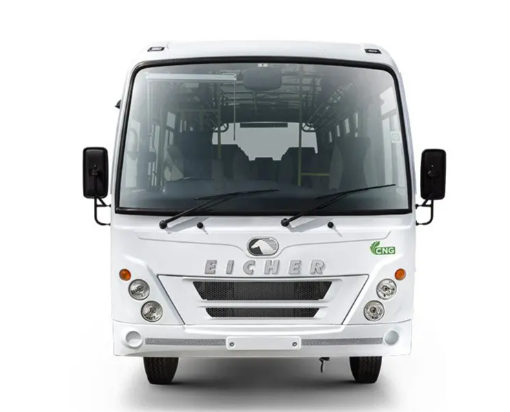

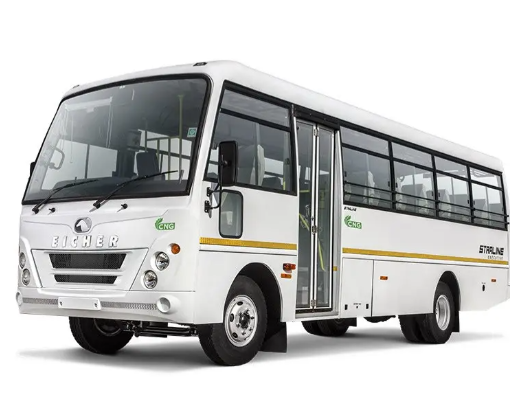

Eicher Starline Next 2070 E CNG AC – Staff Buses by Eicher Trucks and Buses
Specifications
|
Specification |
Details |
|
Bus Model |
Starline Next 2070 E CNG AC |
|

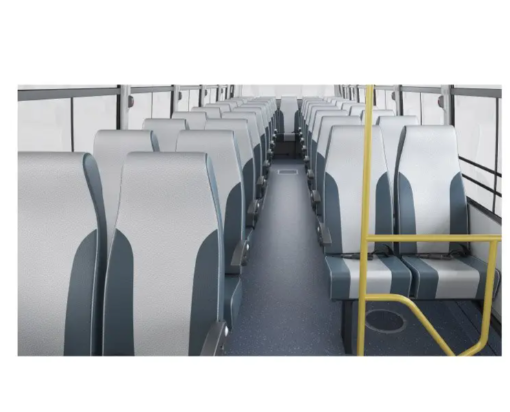

Seating Capacity |
23+1+D HHR |
|
Wheelbase |
3515 mm |
|
Overall Length |
6704 mm |
| Overall Width | 2160 mm |
|
Overall Height |
2970 mm |
|
Front Overhang |
1080 mm |
|
Rear Overhang |
2109 mm |
|
Fuel Tank Capacity |
320 litres |
|

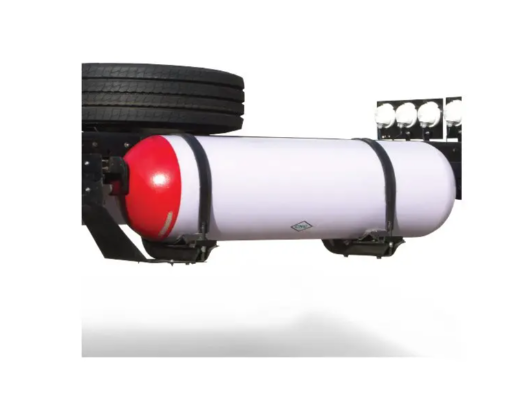

Fuel Type |
CNG |
|
Flooring |
Button vinyl |
|
Application |
Staff Bus |
Frame & Drivetrain
|
Specification |
Details |
|
Chassis Type |
Ladder - Joggle type |
|
Chassis dimension |
210x65x6 mm |
|
Engine Make |
E483 TCIC |
|
Displacement |
3298 cc |
| Power | 85 kW @ 2600 Rpm |
|
Torque |
360 Nm @ 1600-2000 Rpm |
|
Clutch |
310 mm |
|
Transmission Make |
ET35S5 |
|
Transmission Type |
Synchromesh (5 Speed + 1 Rev) |
|
GVW |
7.6 t |
|
Battery |
12V, 130Ah |
|
Alternator |
2 x 110A |
Suspension & Brakes
|
Specification |
Details |
|
Suspension Front |
Semi elliptic |
|
Suspension Rear |
Semi elliptic |
|
Brakes |
Dual Circuit 'S' Cam Full Air brakes |
|
Steering |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyres |
7.50 x 16 - 16 PR |
Components & Features
|
Specification |
Details |
|
Efficiency Feature |
Fuel Coaching |
|
Performance Feature |
MBooster+ |
|
Steering Feature |
Cruise control |
|
Telematics Feature |
Eicher Live telematics system |
|
Safety Feature |
Seat belts for all passengers |
|
Safety Feature |
Emergency exit |
|
Safety Feature |
Reinforced body structure |
|
Safety Feature |
Anti-slip flooring |
|
Safety Feature |
First-aid kit |
|
Comfort Feature |
Air conditioning (AC) unit |
